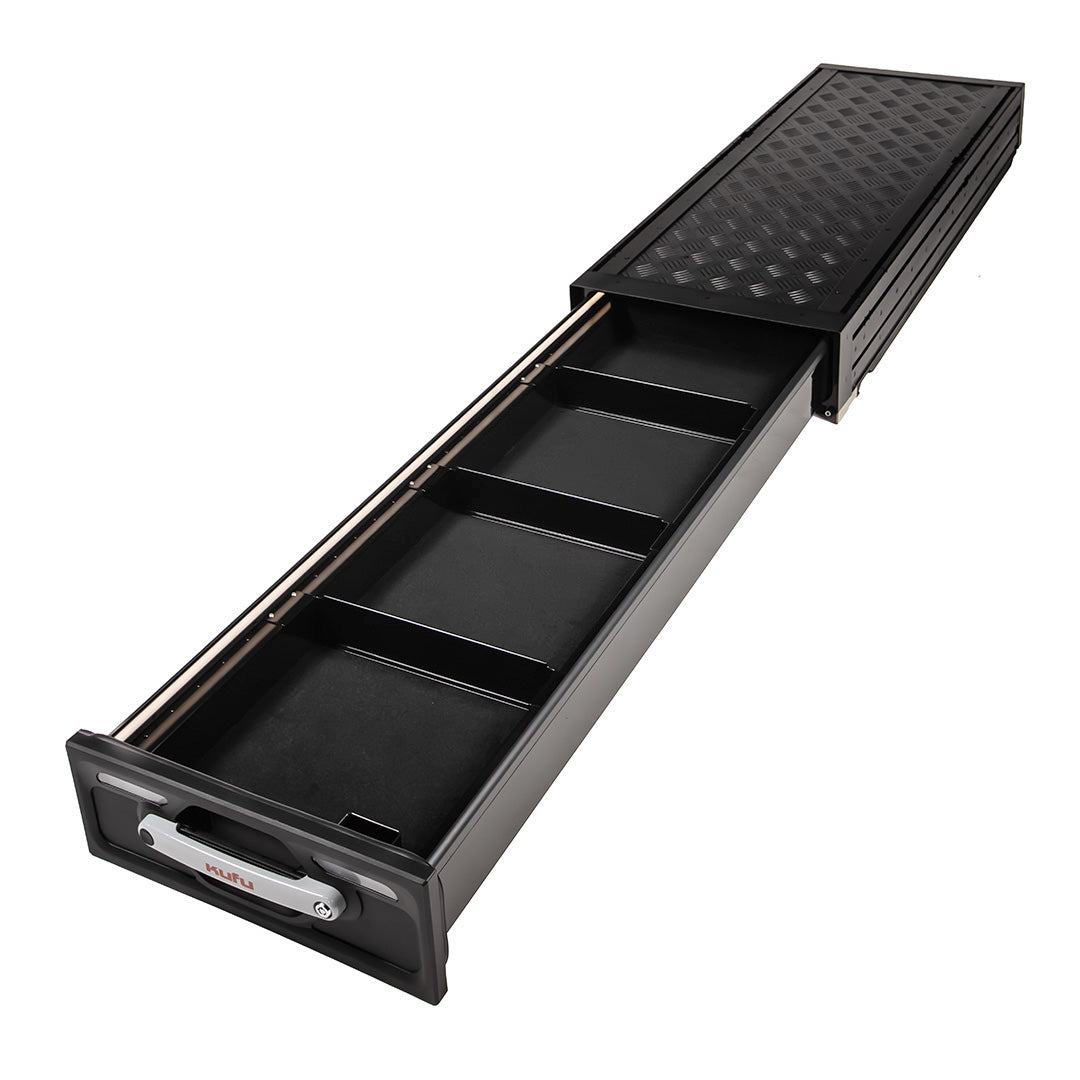

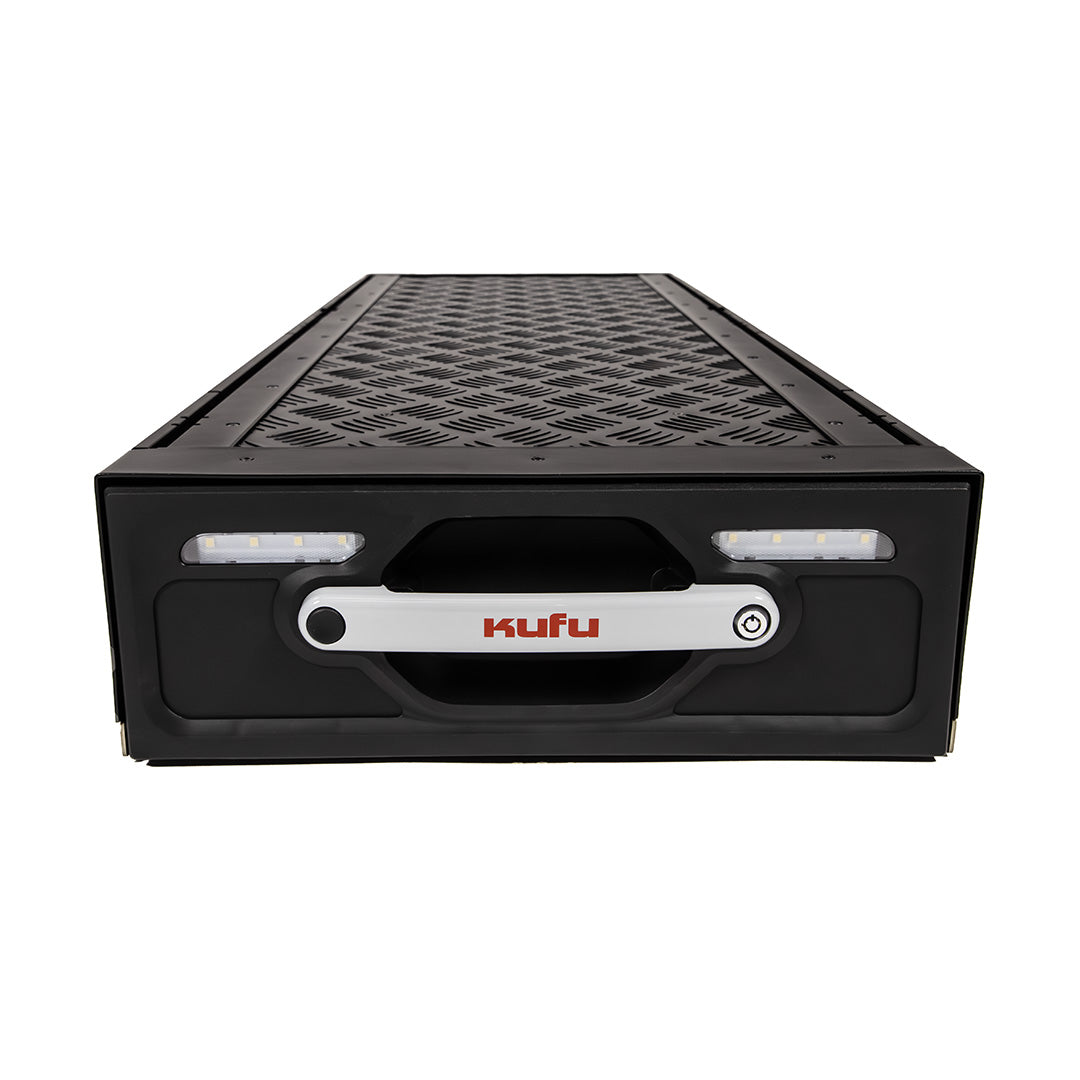

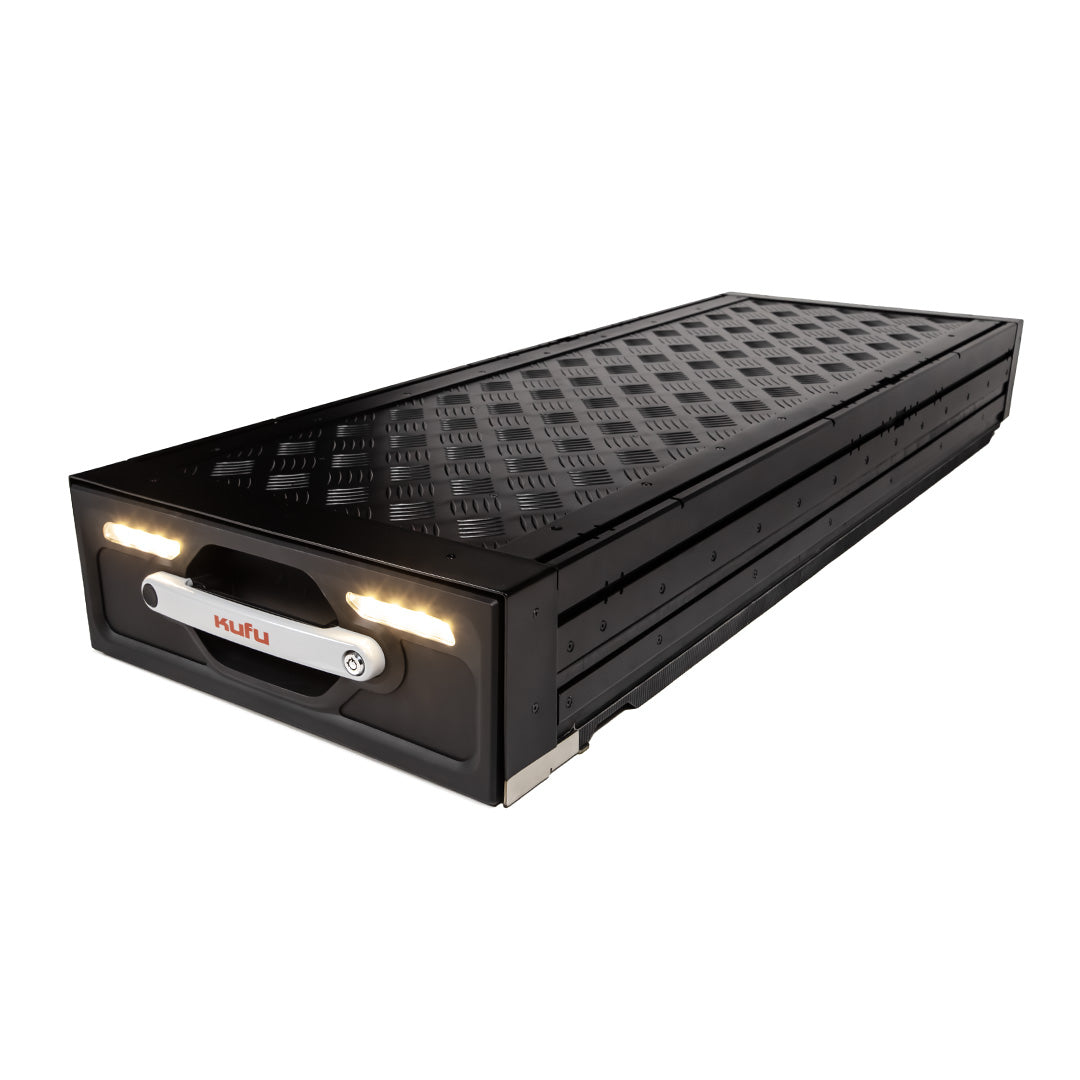

The KUFU Premium Drawer is a heavy-duty single drawer storage solution built for commercial fleets, remote operations, defence, and touring.

Dimensions
180mm x 1400mm x 510mm (H x L x W). Drawer weight: 52kg. Load rated to 150kg. Twin drawer top load rated to 1000kg.

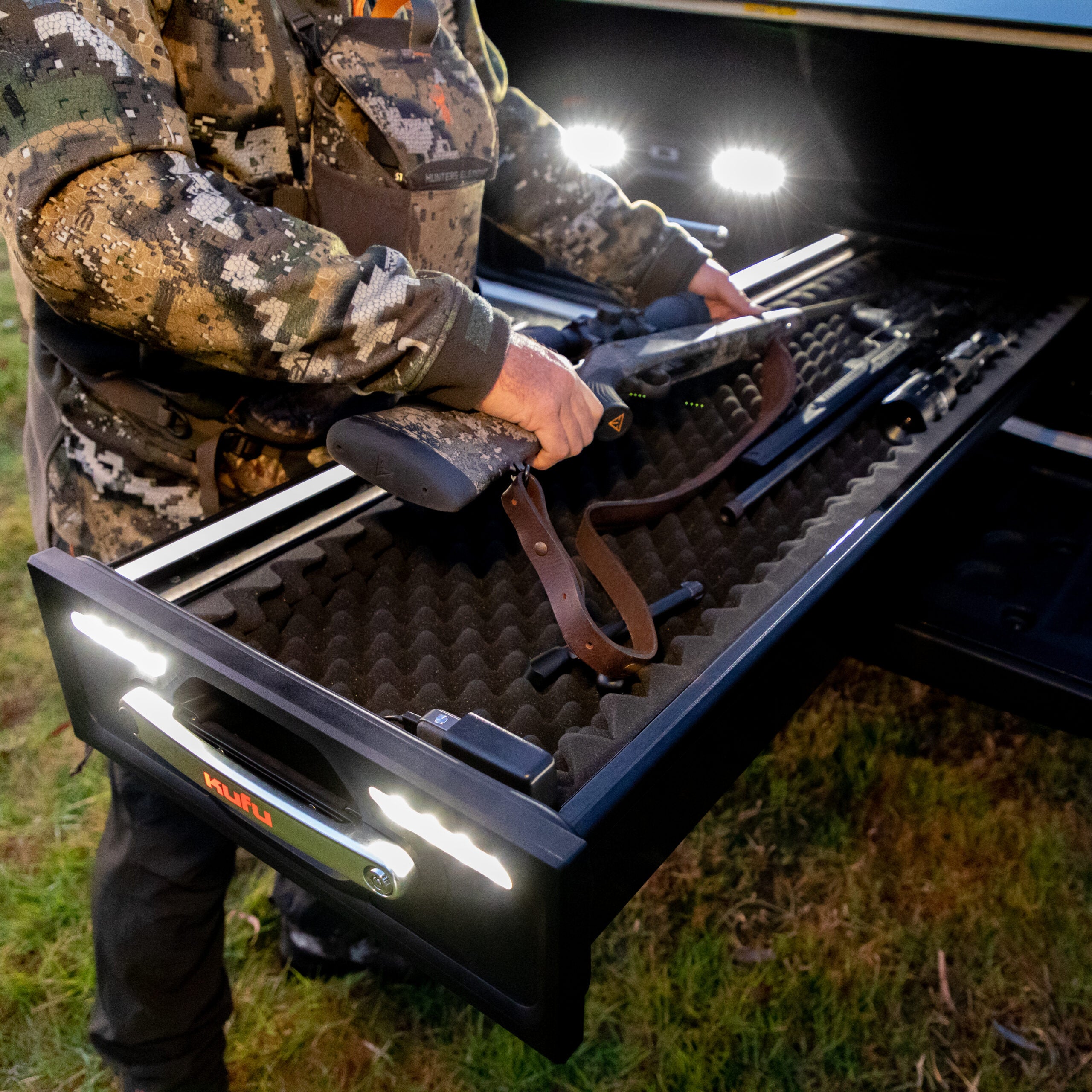

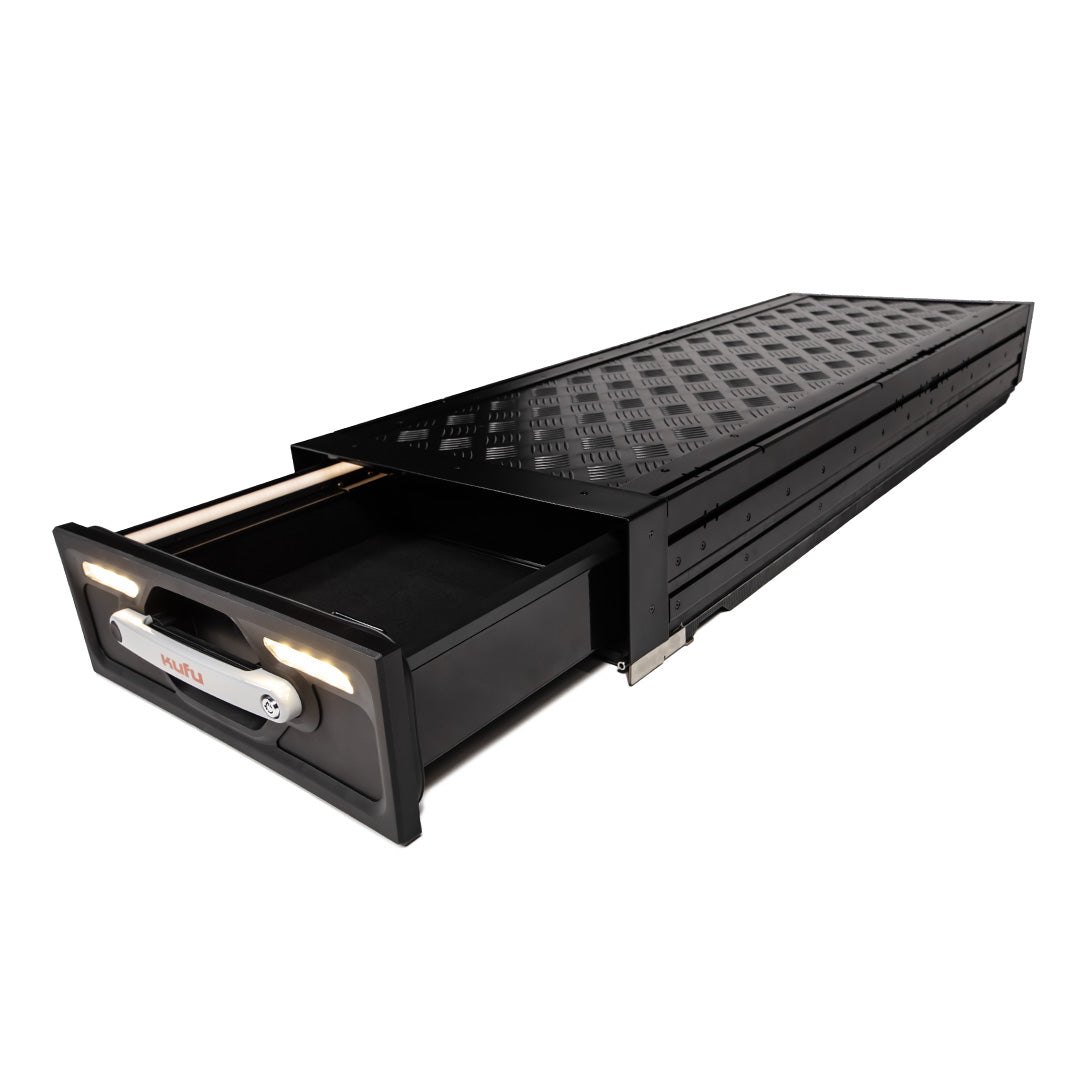

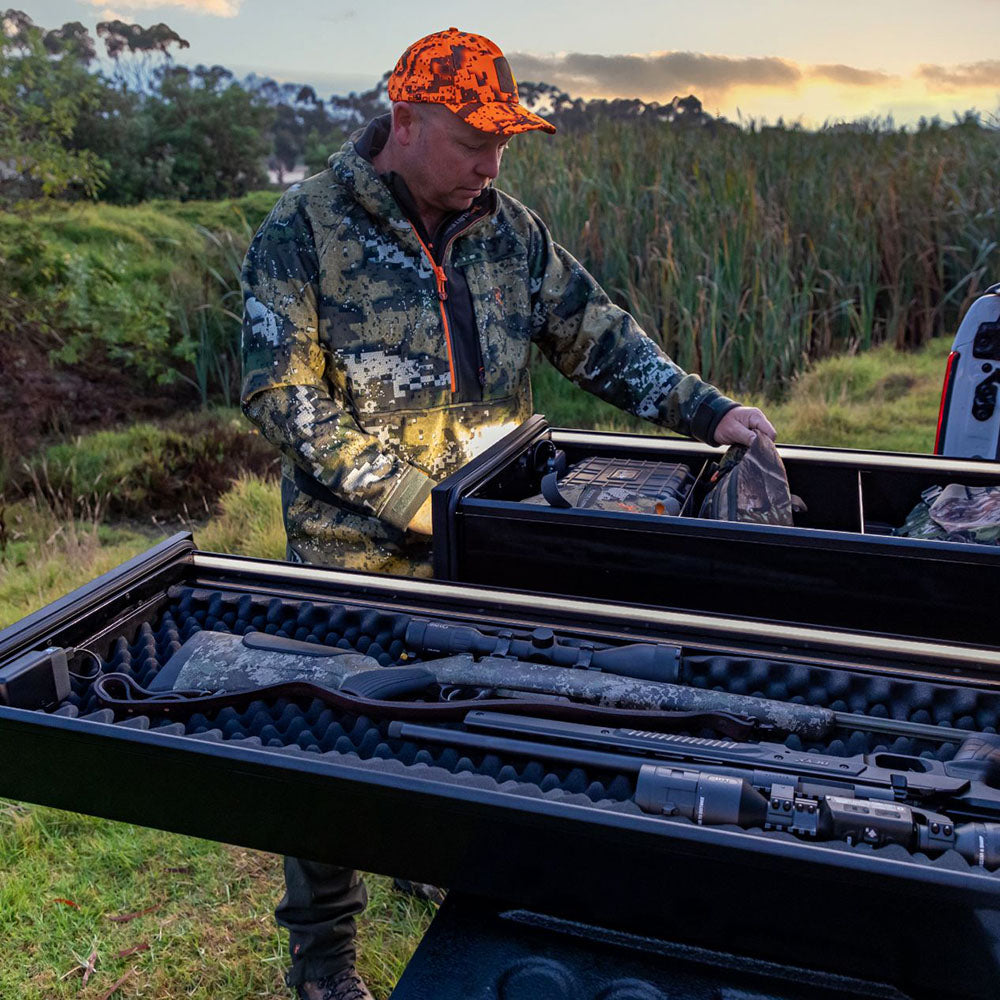

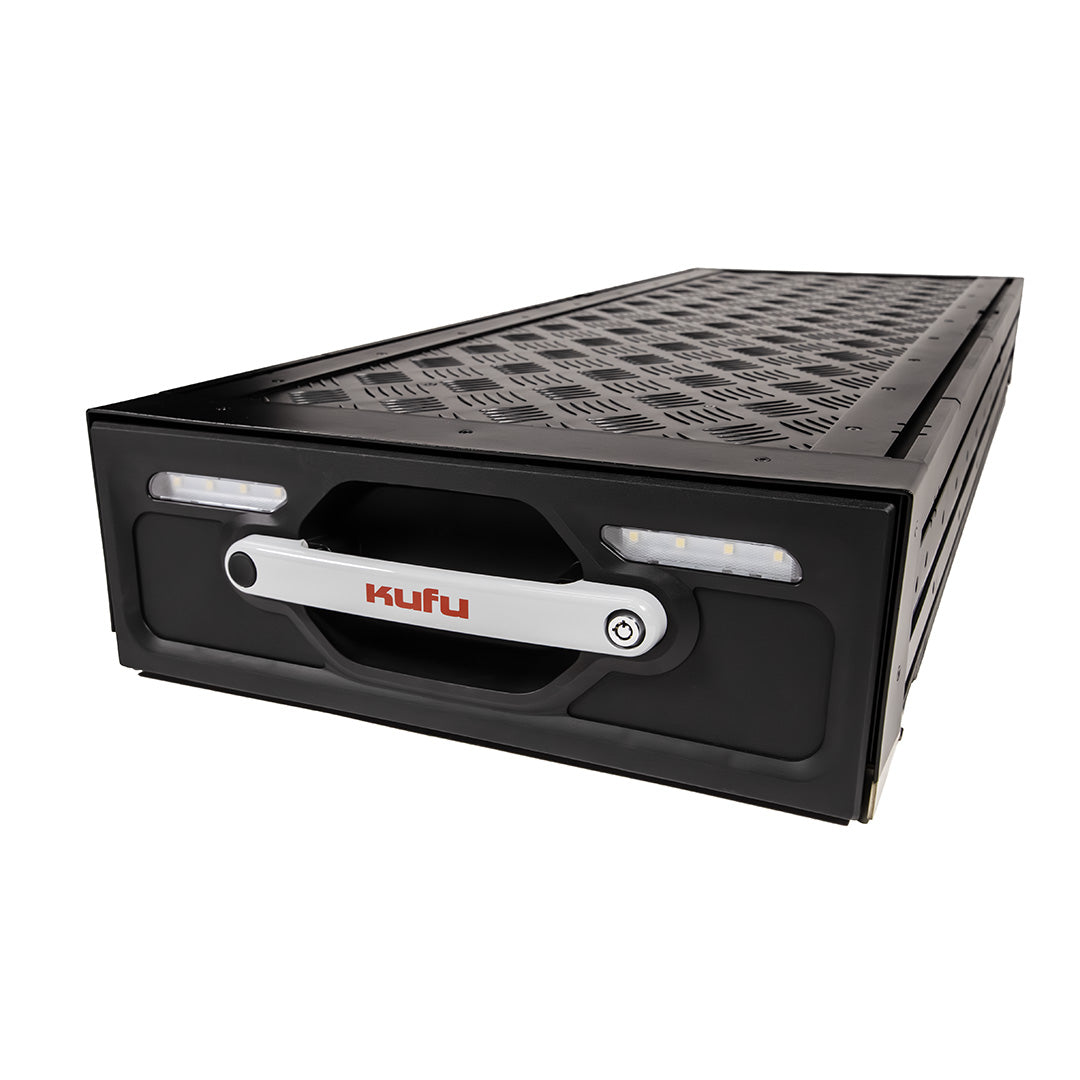

Built with a full composite outer shell, 3mm aluminium top, and injection moulded front, the drawer is sealed for all-weather use and rated as firearm transport safe. Construction combines composite glass-filled resin, aluminium, stainless, and powder-coated components throughout.

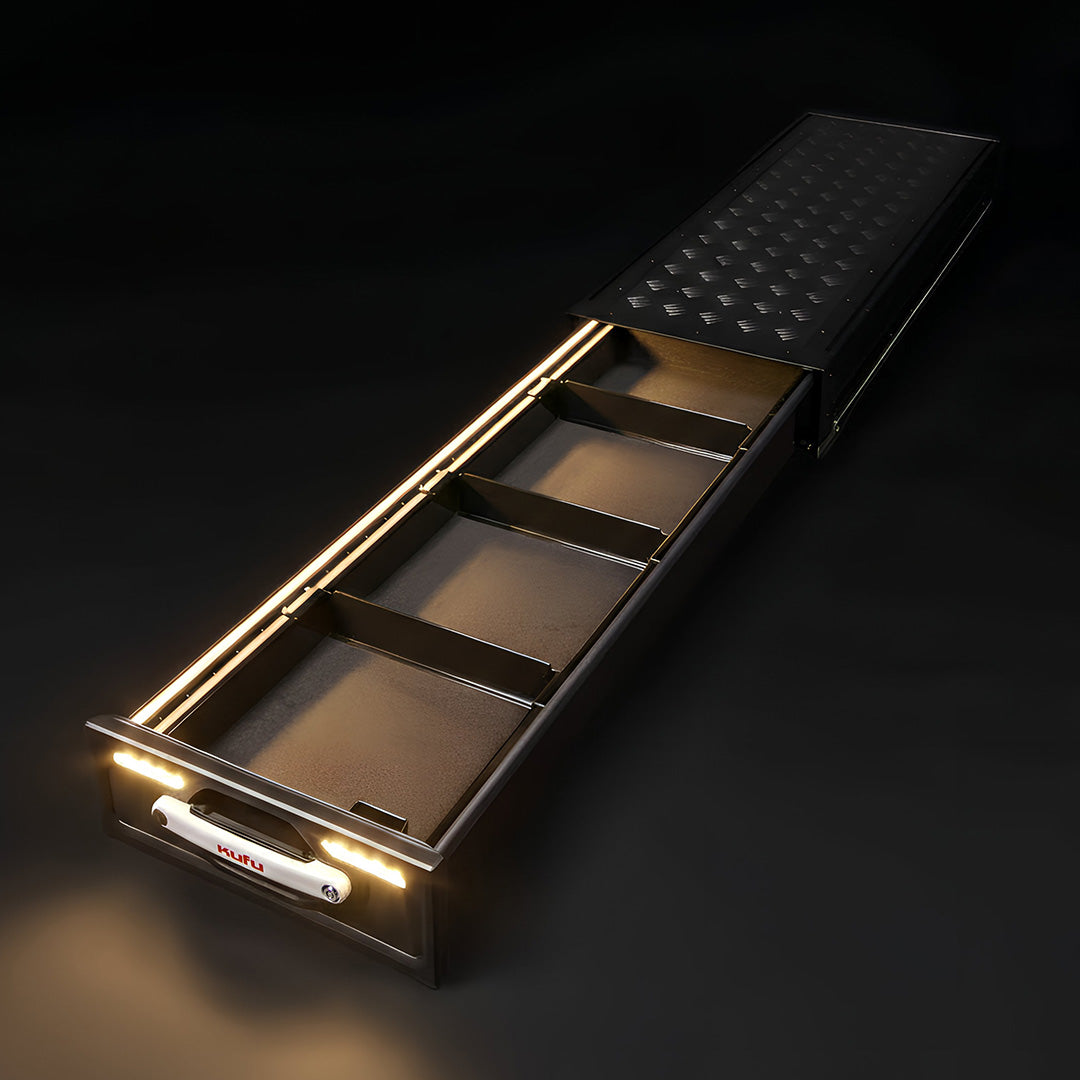

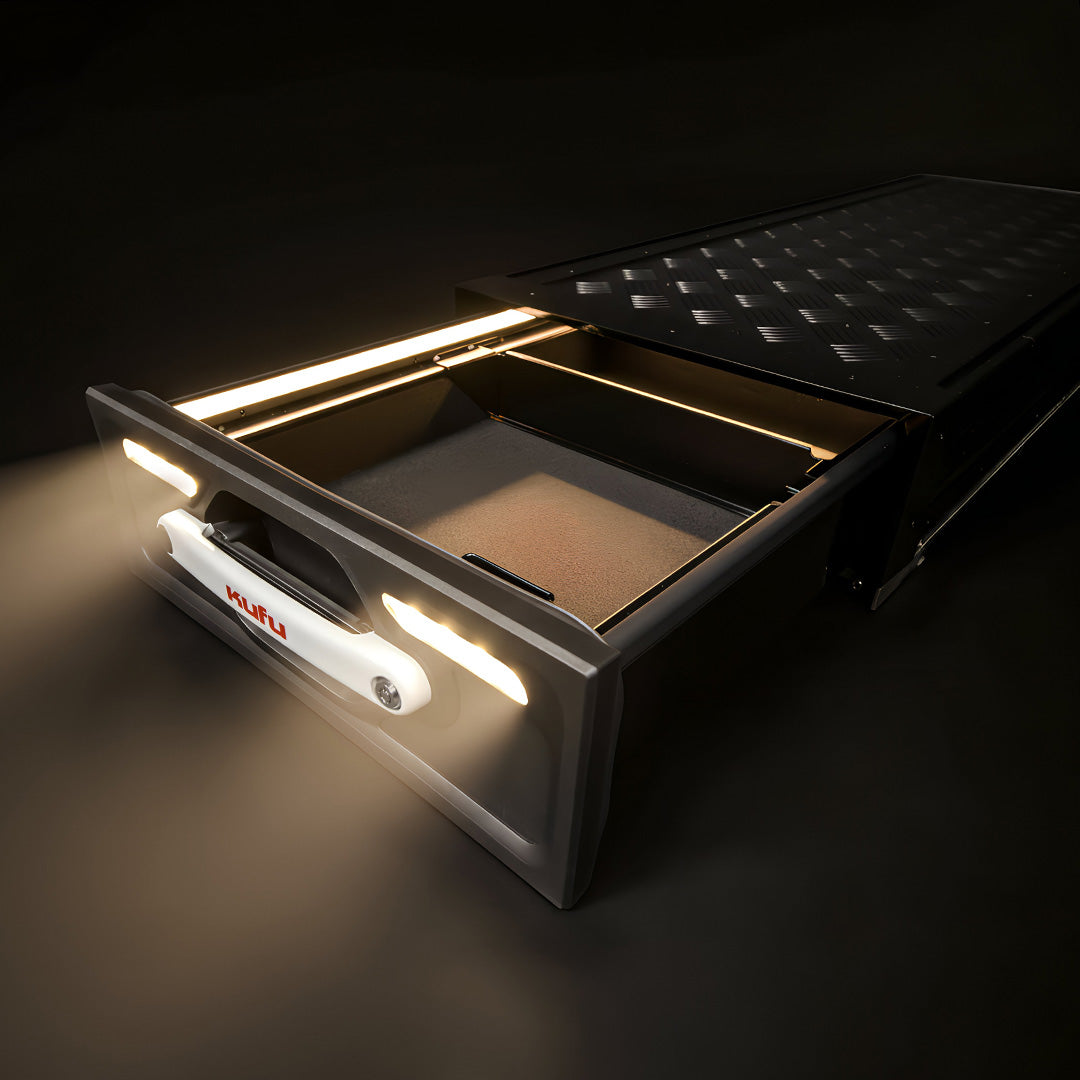

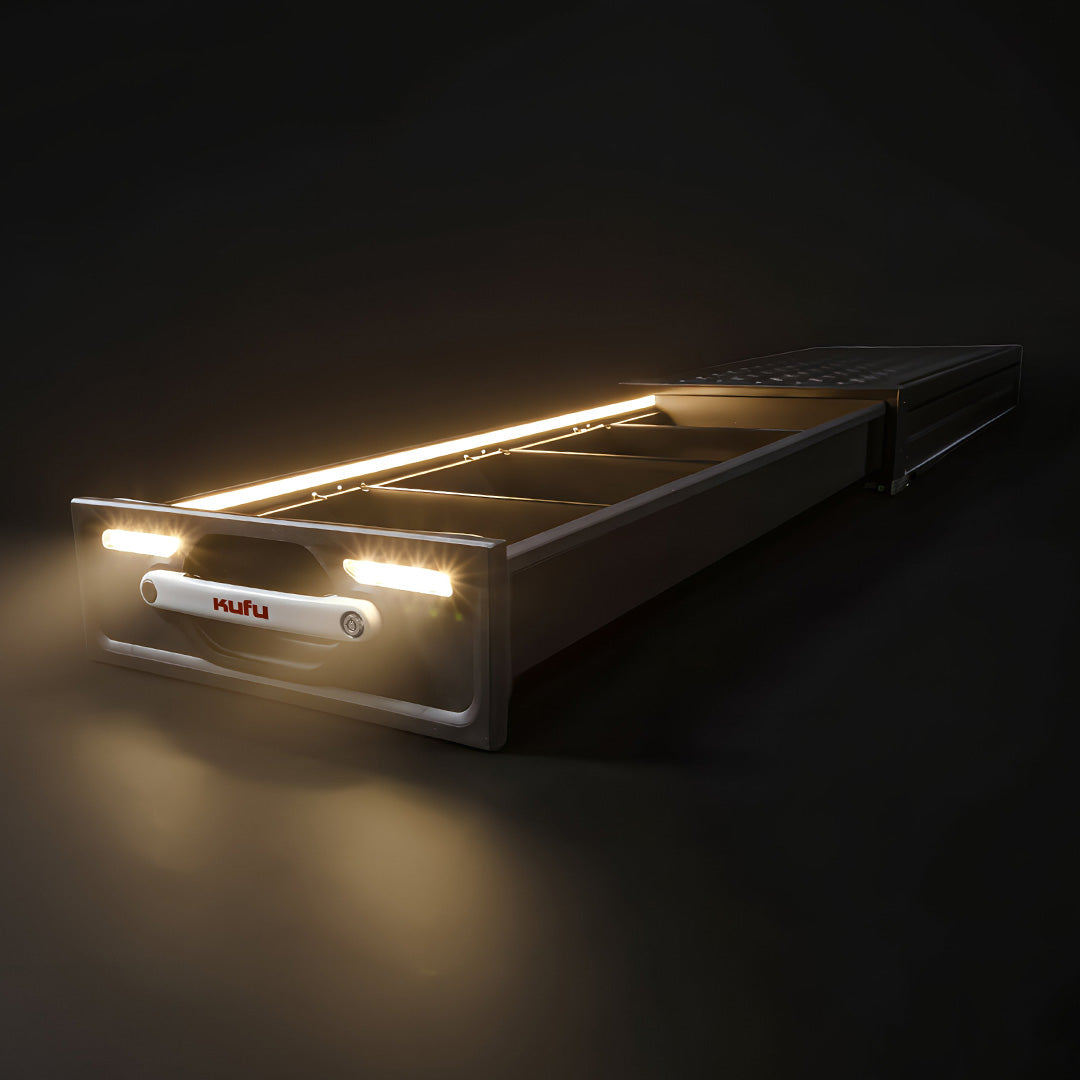

Internal and external LED lighting provides visibility in low light conditions. Incremental drawer lock-out in approximately 100mm increments prevents drawer run-away and meets OH&S requirements.

The system uses KUFU's patented Catch-and-Click technology for tool-free installation, removal, and reconfiguration. ADR crash test compliant to ADR42/05 and ADR69/00. Stackable in three height options: 180mm, 280mm, and 460mm. Side fill-in panels available separately. Power bank sold separately.

Features

• Full composite outer shell with 3mm aluminium top
• Sealed all-weather design, firearm transport safe
• Internal and external LED lighting
• Incremental drawer lock-out in approximately 100mm increments (OH&S compliant)
• Full extension and 150kg load rated
• Twin drawer top load rated to 1000kg
• Quick release design, no tools required (Patent: EU, UK, AU, NZ, USA)
• ADR crash test compliant: ADR42/05 and ADR69/00
• Stackable in three height options: 180mm, 280mm, and 460mm
• Side fill-in panels available separately
• Power bank sold separately
• Built from composite glass-filled resin, aluminium, stainless, and powder-coated components

About the KUFU Drawer System

The KUFU Drawer System is a modular vehicle storage solution built around patented Catch-and-Click™ technology - a tool-free bracket system that allows fast installation, removal, and reconfiguration in seconds.

Designed in Australia and compliant with ADR42/05 and ADR69/00, the system is suited to recreation, trades, defence, medical, and fleet applications. Compatible with SUVs, tray tops, utility bed trucks, vessels, and aircraft.

Winner of the Australian Good Design Award 2023. Distributed across the USA, Europe, Baltic states, and Scandinavia.

Catch-and-Click™ Quick Release

Each drawer or slide connects to a Catch-and-Click™ Bracket Kit. No tools required - fit, swap, or remove a drawer in seconds. The system is stackable and interchangeable, allowing multiple configurations from the same platform.

Universal Mounting Platform

Mounting platforms are not vehicle-specific, making the system straightforward to transfer between vehicles - useful for fleets or when upgrading.

Dual Cab Utility Beds:

• 1400mm platform - minimum bed length 1445mm (Japanese, Chinese & US dual cabs)
• 1700mm platform - minimum bed length 1745mm (LWB US & Japanese extra cabs)

Tray Backs, Canopies & Trailers:

• Three platform lengths available - 1050mm, 1400mm, and 1700mm

SUV & Wagon Vehicles:

• Universal 1050mm mounting platform with vehicle-specific bracket and fastener kits
• No-drill fitment - bolts into existing OEM mount points
