Brackets not included. Sold separately.

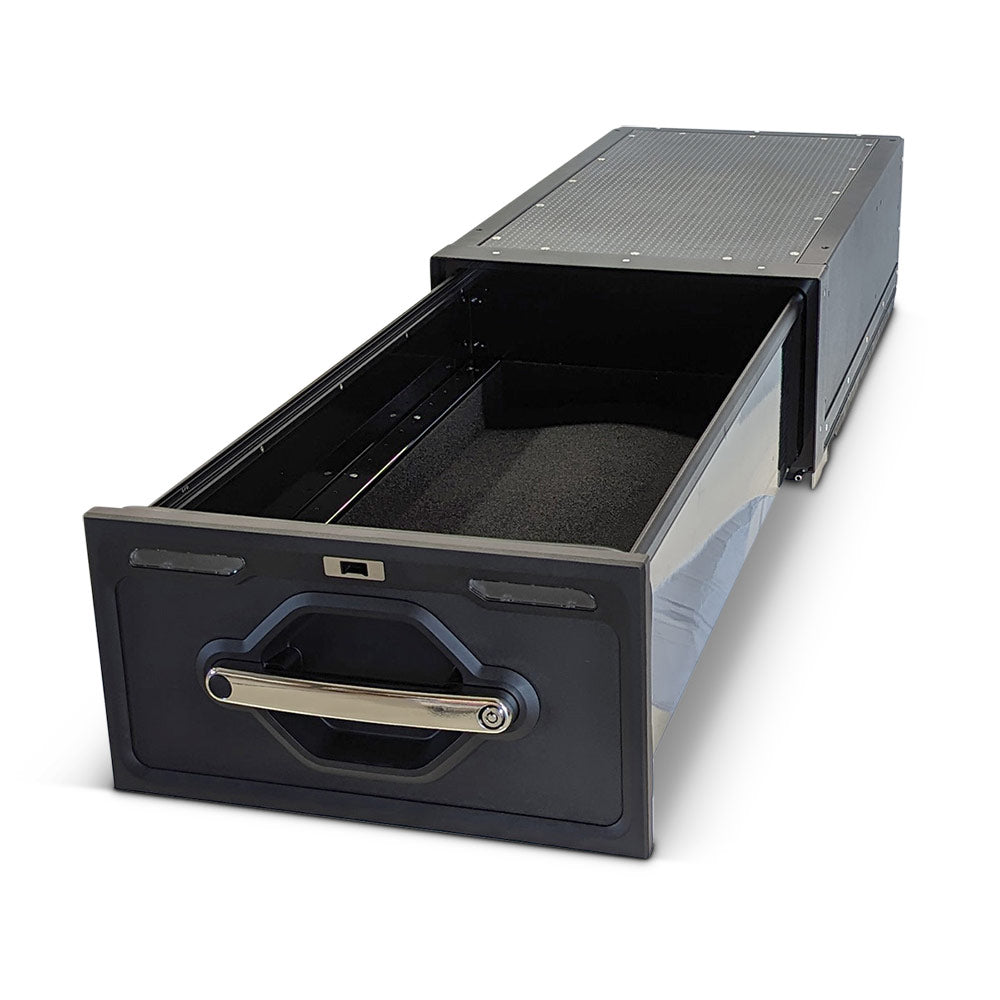

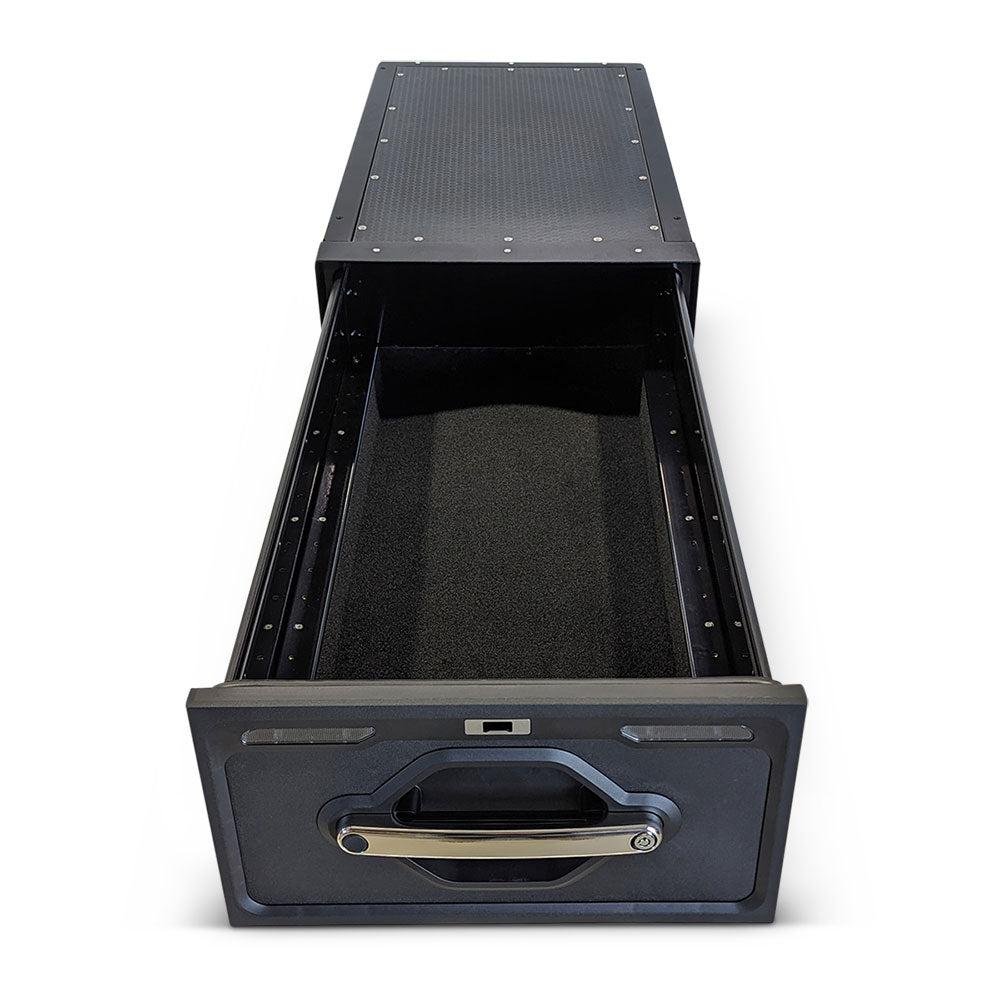

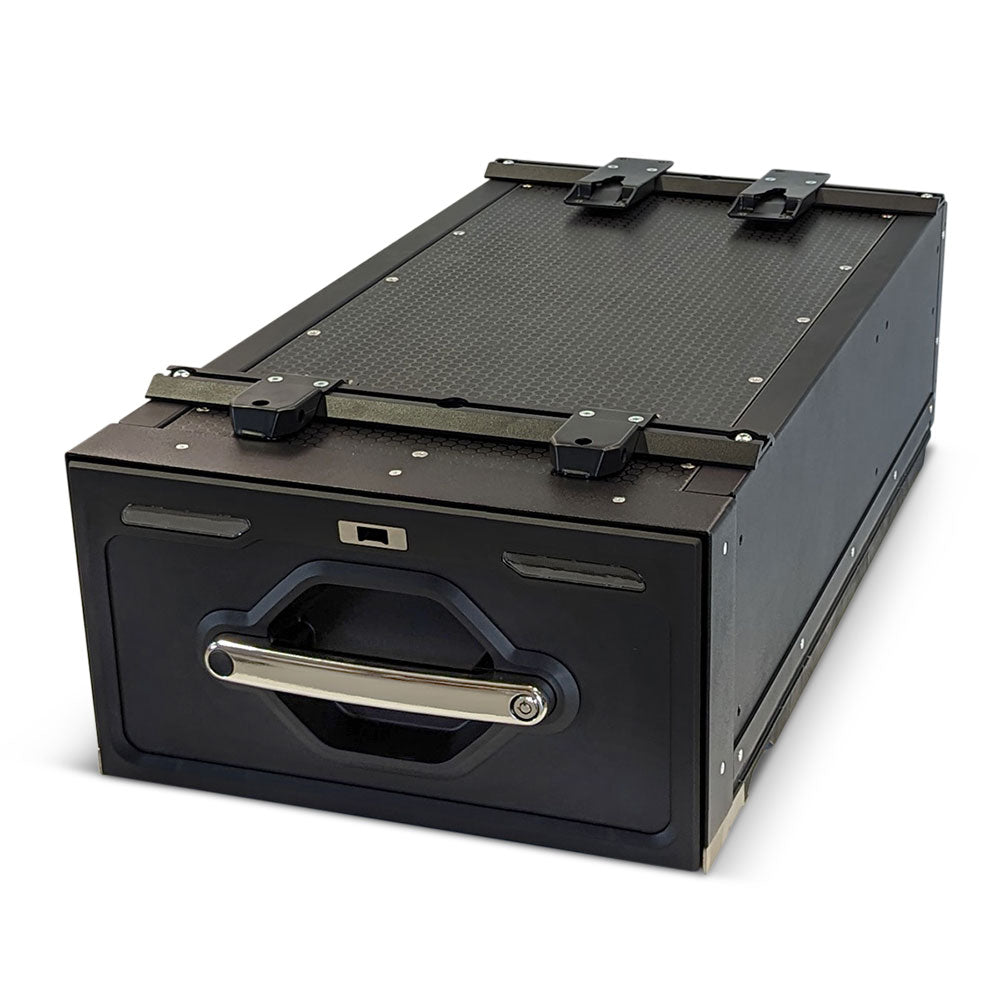

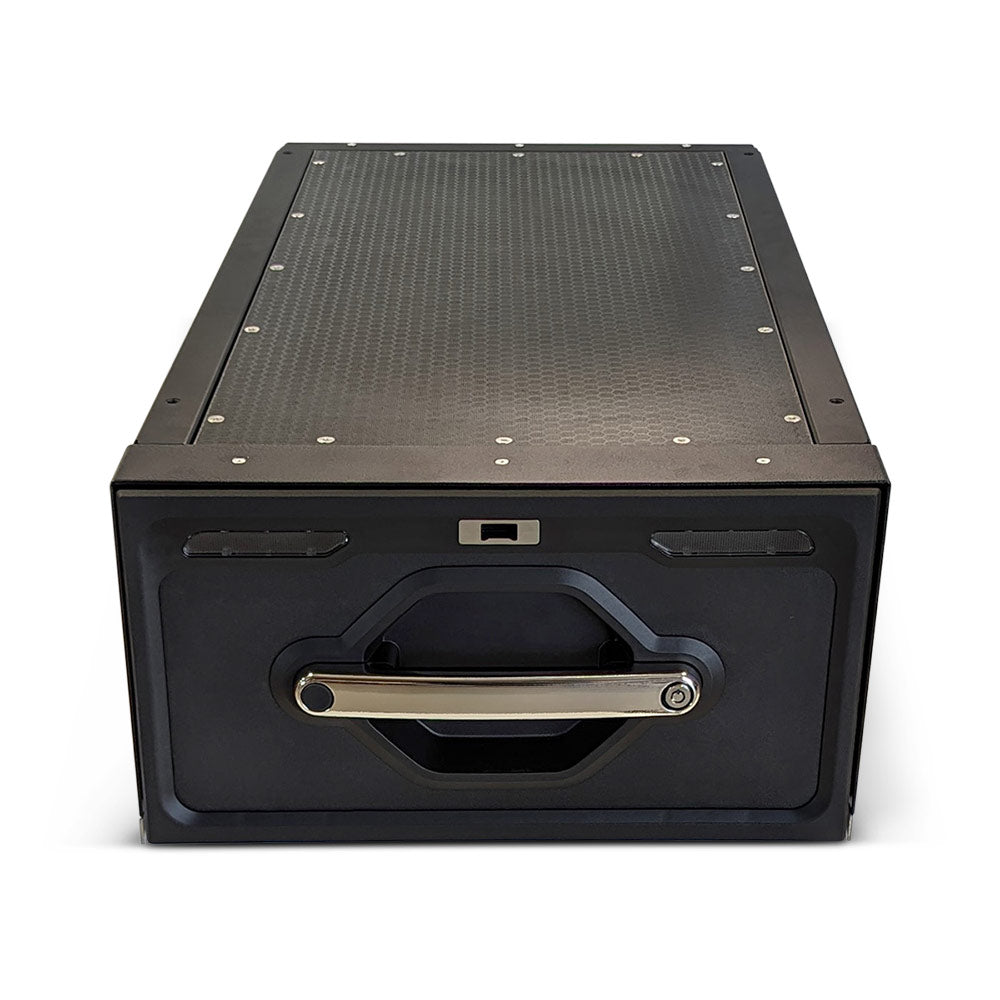

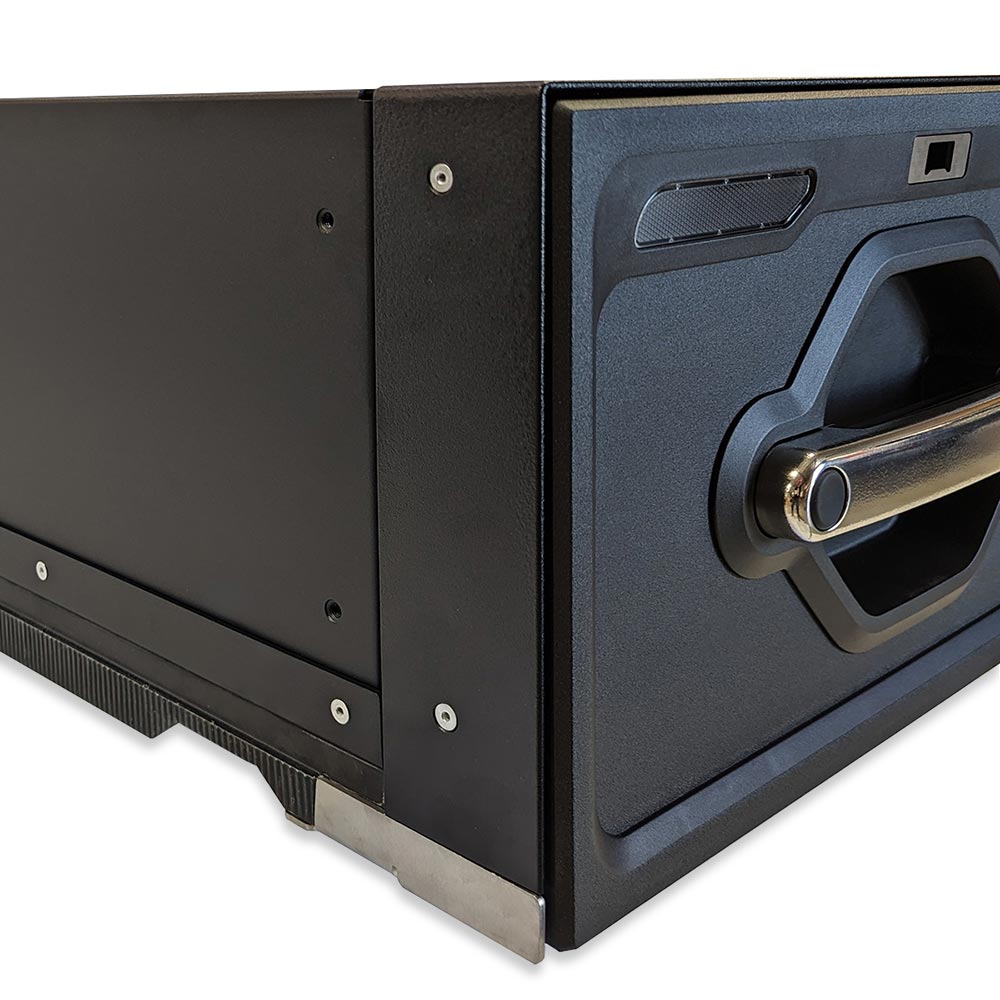

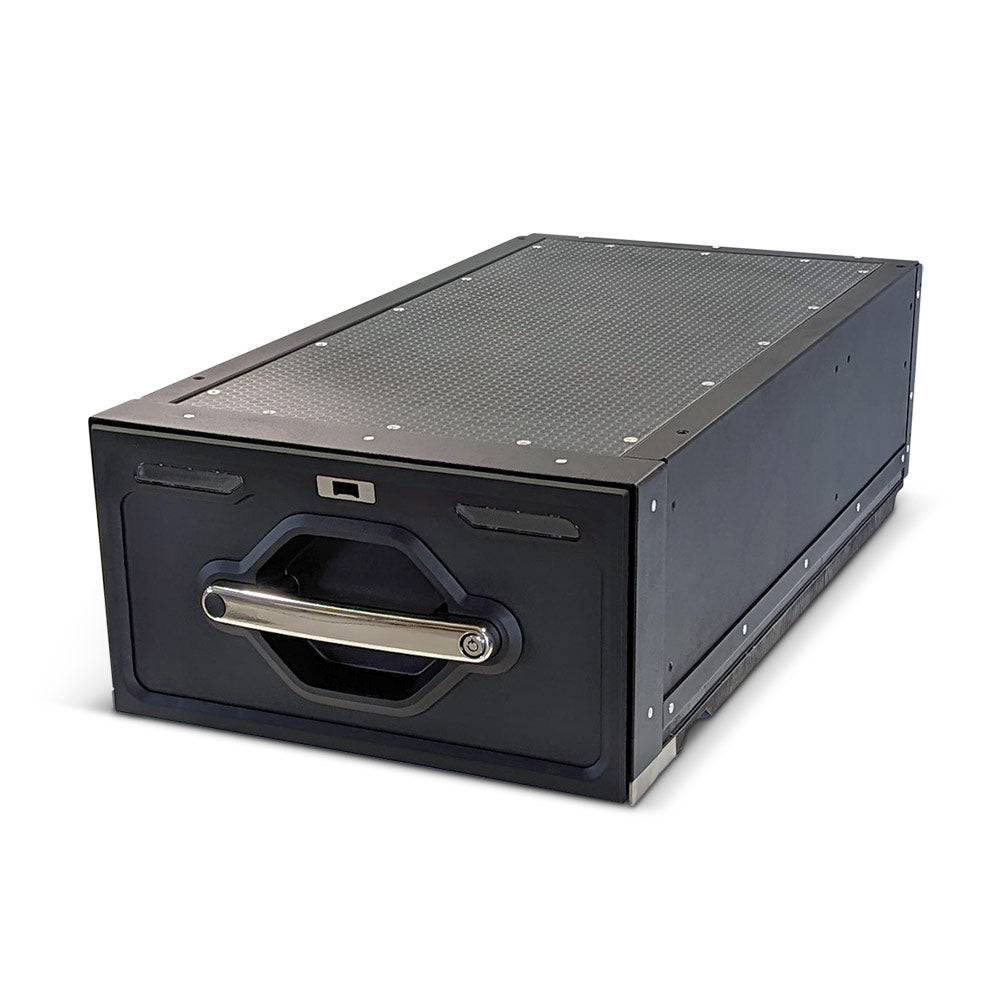

The KUFU Drawer System Econo is a lightweight single drawer storage solution for touring and everyday use. Available in two sizes: 950 x 510 x 280mm and 1400 x 510 x 280mm (L x W x H).

The 950mm drawer weighs 32kg, is 100kg load rated, and supports a 400kg top load.

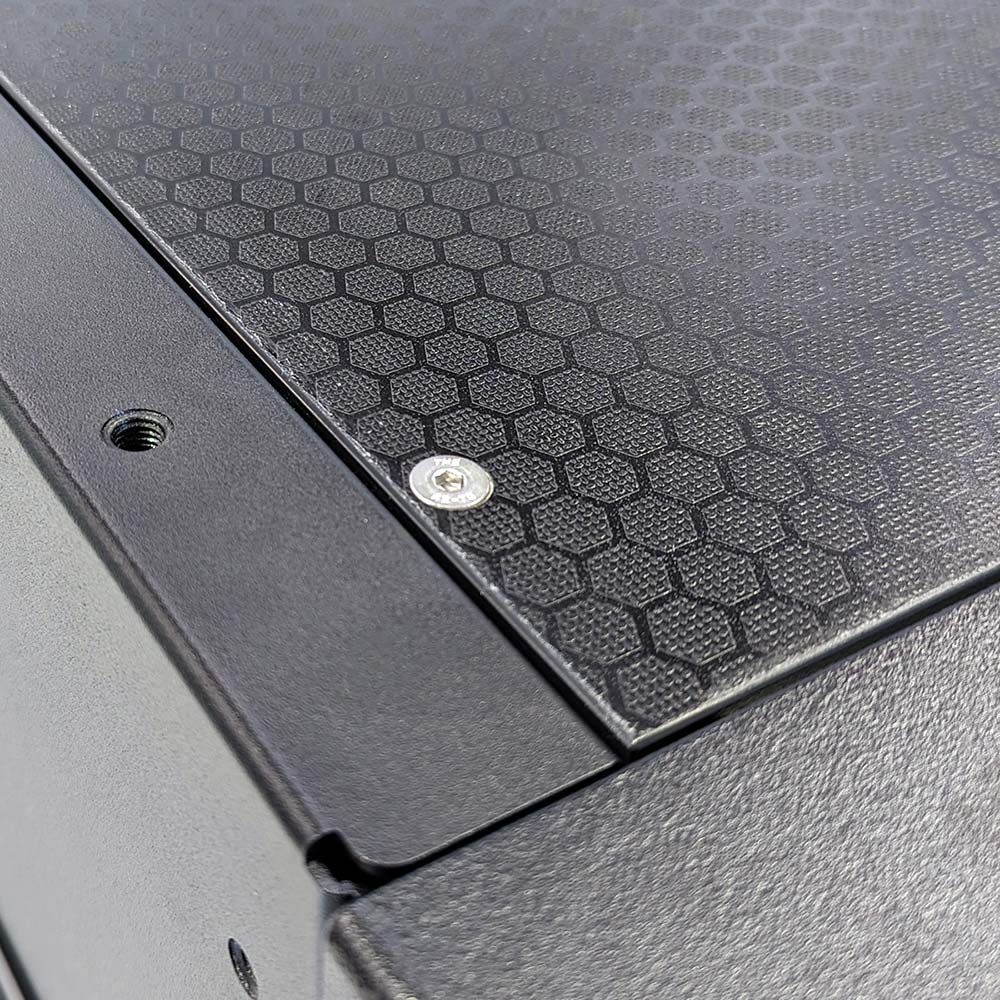

Built on the same composite base as the broader KUFU system, the Econo uses an aluminium outer shell to reduce weight and a Marine Hexa Ply top to maintain modular compatibility across the range. There is no external carpet, keeping the design straightforward and weather resistant.

The system runs on KUFU's patented Catch-and-Click technology, a tool-free bracket system that allows fast installation, removal, and reconfiguration. Incremental drawer lock-out operates in approximately 100mm increments, meeting OH&S requirements. ADR crash test compliant to ADR42/05 and ADR69/00.

Usage

Suits recreation, trades, and fleet use across SUVs, utes, tray tops, and canopies.

Key Features

• Lightweight design for improved payload efficiency
• Incremental drawer lock-out in approximately 100mm increments (OH&S compliant)
• Quick release design, no tools required (Patent: EU, UK, AU, USA)
• Full extension and 100kg load rated
• ADR crash test compliant: ADR42/05 and ADR69/00
• Weather resistant design, no external carpet
• Side wing fill-in panels available for most major models
• Stackable

About the KUFU Drawer System

The KUFU Drawer System is a modular vehicle storage solution built around patented Catch-and-Click™ technology - a tool-free bracket system that allows fast installation, removal, and reconfiguration in seconds.

Designed in Australia and compliant with ADR42/05 and ADR69/00, the system is suited to recreation, trades, defence, medical, and fleet applications. Compatible with SUVs, tray tops, utility bed trucks, vessels, and aircraft.

Winner of the Australian Good Design Award 2023. Distributed across the USA, Europe, Baltic states, and Scandinavia.

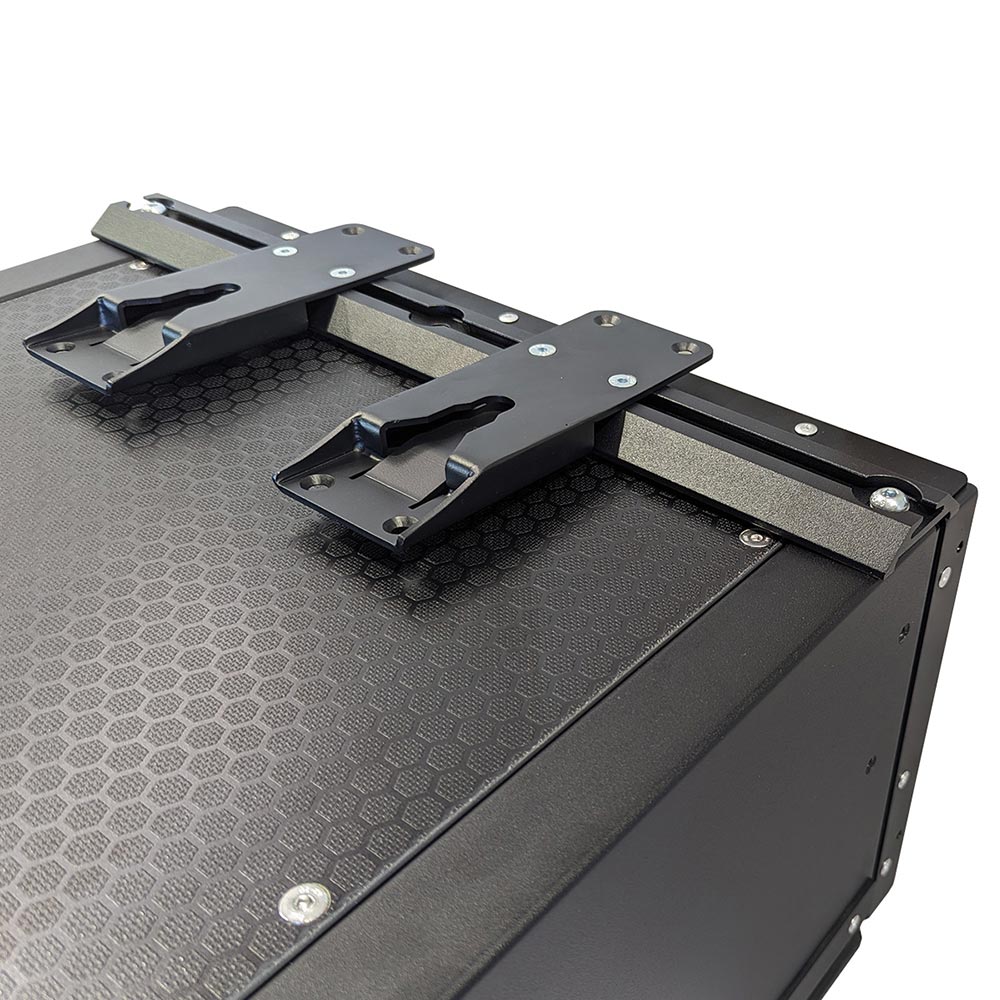

Catch-and-Click™ Quick Release

Each drawer or slide connects to a Catch-and-Click™ Bracket Kit. No tools required - fit, swap, or remove a drawer in seconds. The system is stackable and interchangeable, allowing multiple configurations from the same platform.

Universal Mounting Platform

Mounting platforms are not vehicle-specific, making the system straightforward to transfer between vehicles - useful for fleets or when upgrading.

Dual Cab Utility Beds:

• 1400mm platform - minimum bed length 1445mm (Japanese, Chinese & US dual cabs)
• 1700mm platform - minimum bed length 1745mm (LWB US & Japanese extra cabs)

Tray Backs, Canopies & Trailers:

• Three platform lengths available - 1050mm, 1400mm, and 1700mm

SUV & Wagon Vehicles:

• Universal 1050mm mounting platform with vehicle-specific bracket and fastener kits
• No-drill fitment - bolts into existing OEM mount points
