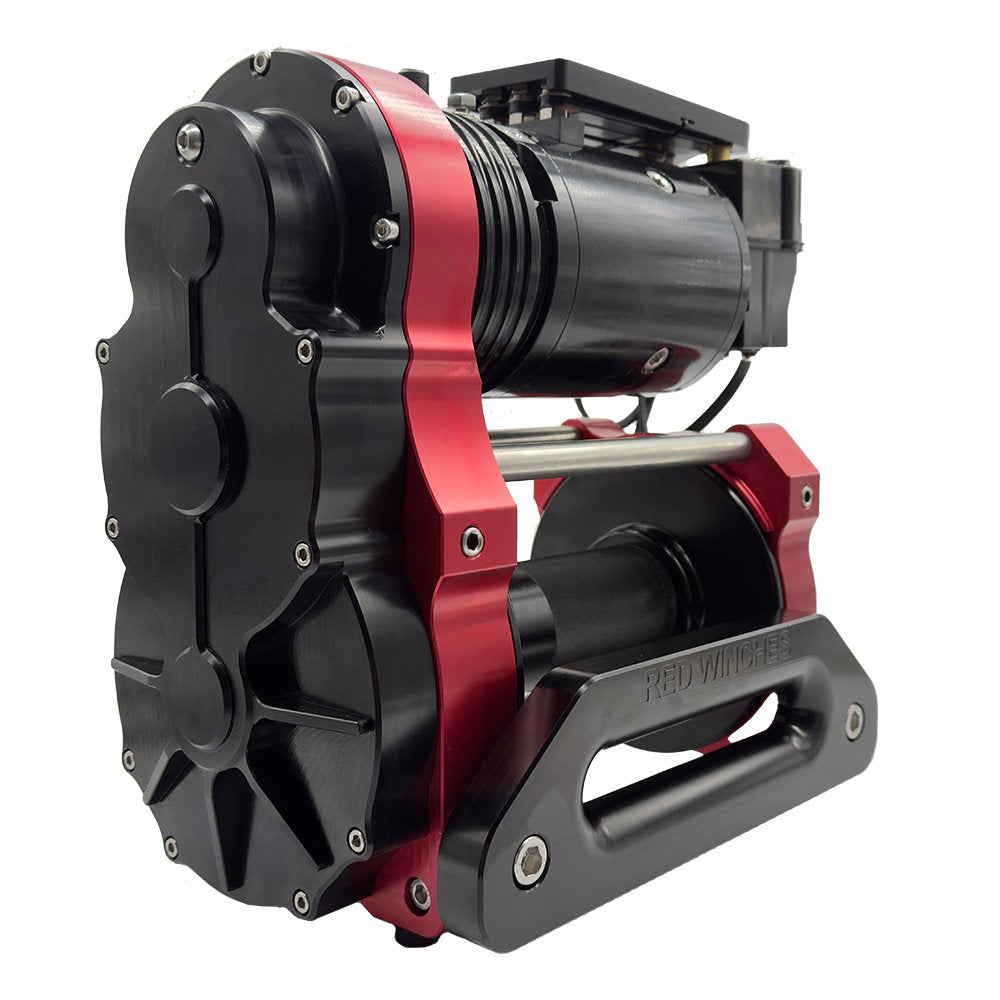

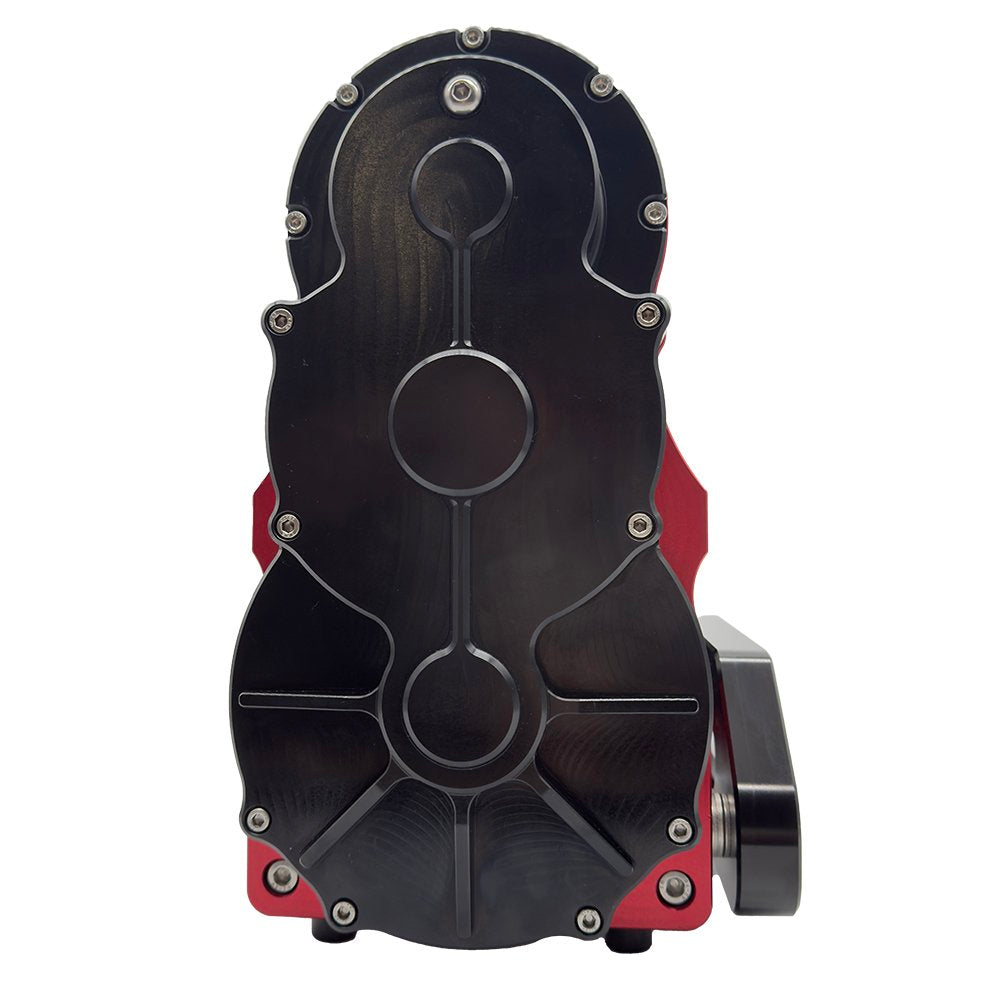

The King Cobra utilises a cascade-style gearbox to transmit the power from the motor down to the drive shaft. The gears are manufactured from chromium molybdenum steel and case hardened to give maximum strength (Up to 1230 N/mm2) and excellent durability. The gearbox runs in semi-liquid grease, not oil, making it much easier to service.

Key Features

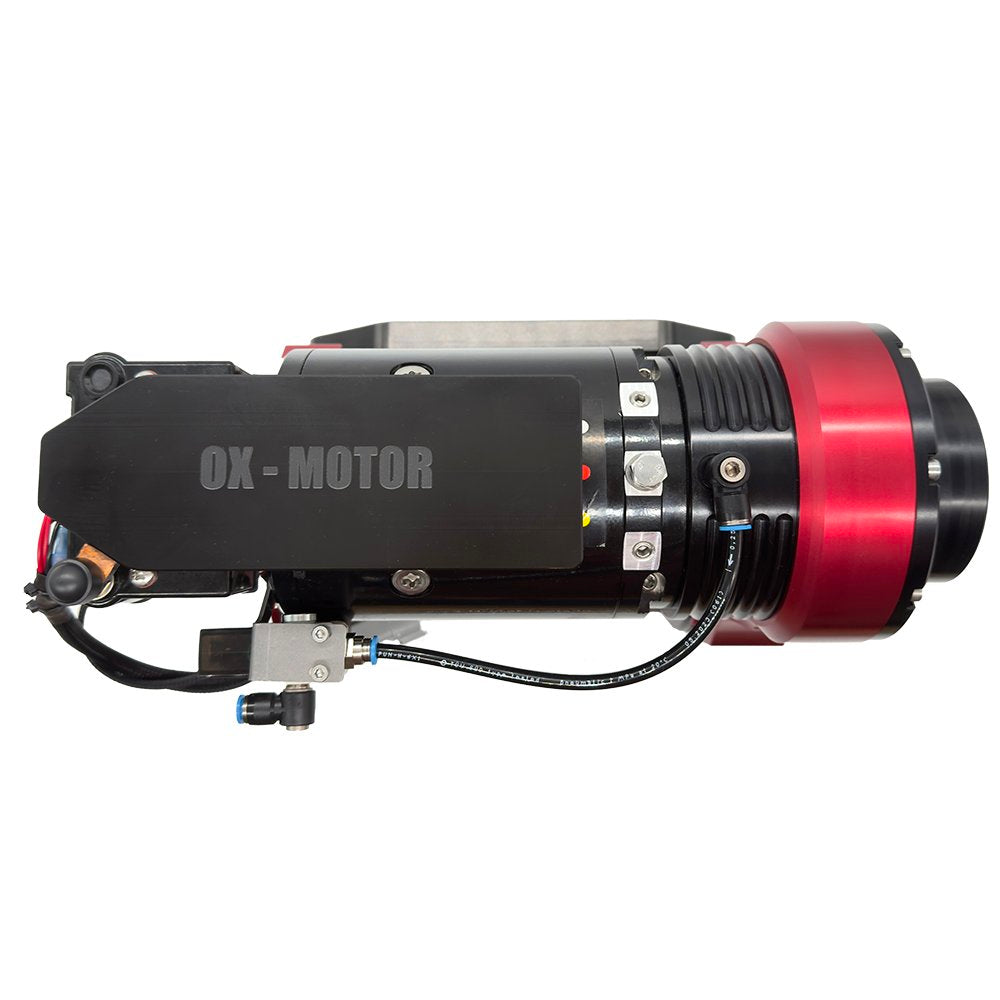

• 7hp Single Motor or 14hp Twin Ox Motor* – Unparalleled performance and versatility for every situation.
• Four gearing options enable the user to adapt the winch for the platform it is installed on.
• Full drum disconnect freespool design
• CNC-machined aerospace aluminium body – Ensuring maximum durability and minimum stress.
• Air Brake System – A patented system for superior control and stopping power. Read More.

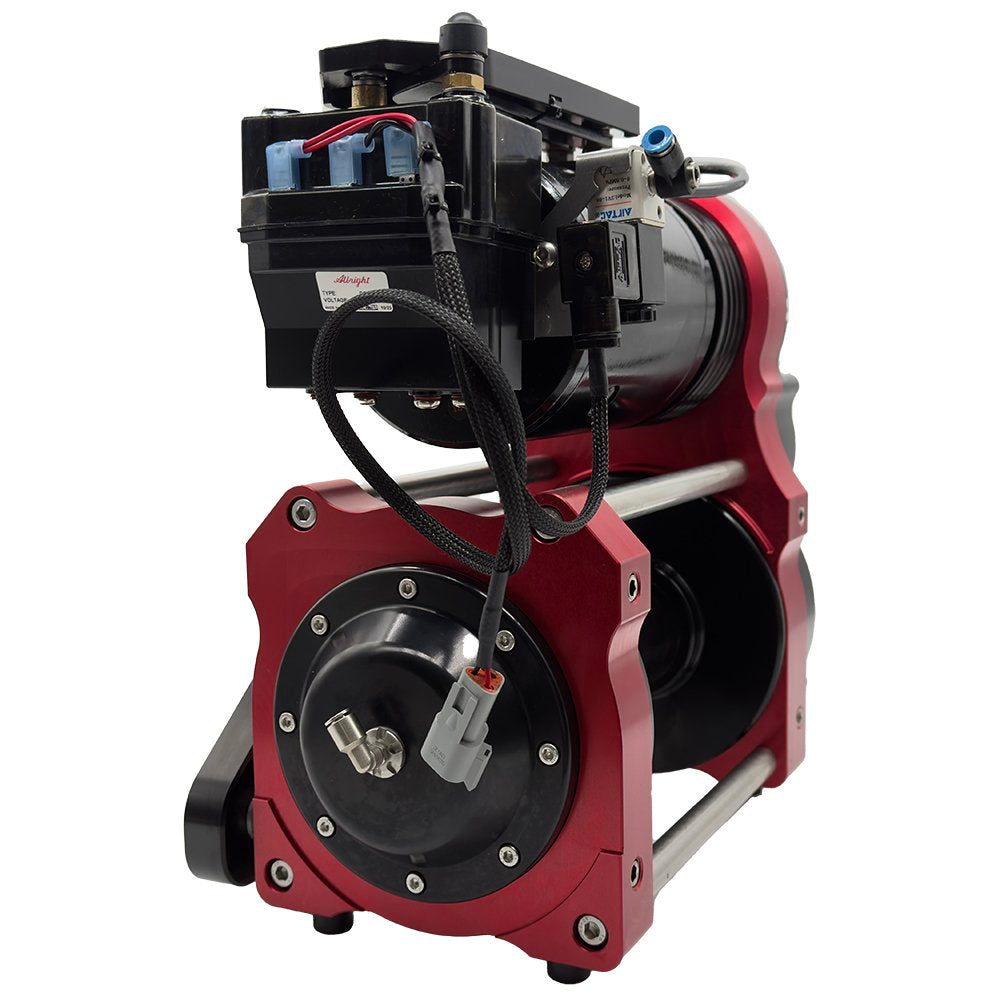

• High-Efficiency Electrical Setup – Featuring premium copper bus bars and Albright solenoids.
• CNC Machined Aluminium Fairlead – Haws fairlead CNC machined to give the best possible bend radius.
• Exceptional Pulling Capacity – From Race gearing at 2500kg (5500lbs) to Twin Motor Titan 10000kg (22000lbs).
• High-Speed Operation – Up to 58m/min (190 ft/min) with Race gearing for rapid winching.
• Choice of colours, either anodised or Cerakote (anodised red and black as standard)

*Twin motor option only available on medium and XL length drum models.

Includes

• King Cobra winch
• Rope with hook – please see Rope & Hook tab for rope details
• Plasma lock
• Air solenoid and bracket assembly for air brake and air freespool control
• 3m Wiring loom extension to run back to the dash switches
• Winch-in / winch-out switch
• Freespool switch
• 8.8 grade Mounting bolts and washers x 4
• 3m of 6mm Air line
• Manual isolator switch

Power cables - Single motor models:

• 2M x 50mm2 Negative cable with lugs
• 0.4M x 50mm2 and 1.6M x 50mm2 Positive cables with lugs

Power cables - Twin motor models:

• 2M x 70mm2 Negative cable with lugs
• 0.4M x 70mm2 and 1.6M x 70mm2 Positive cables with lugs

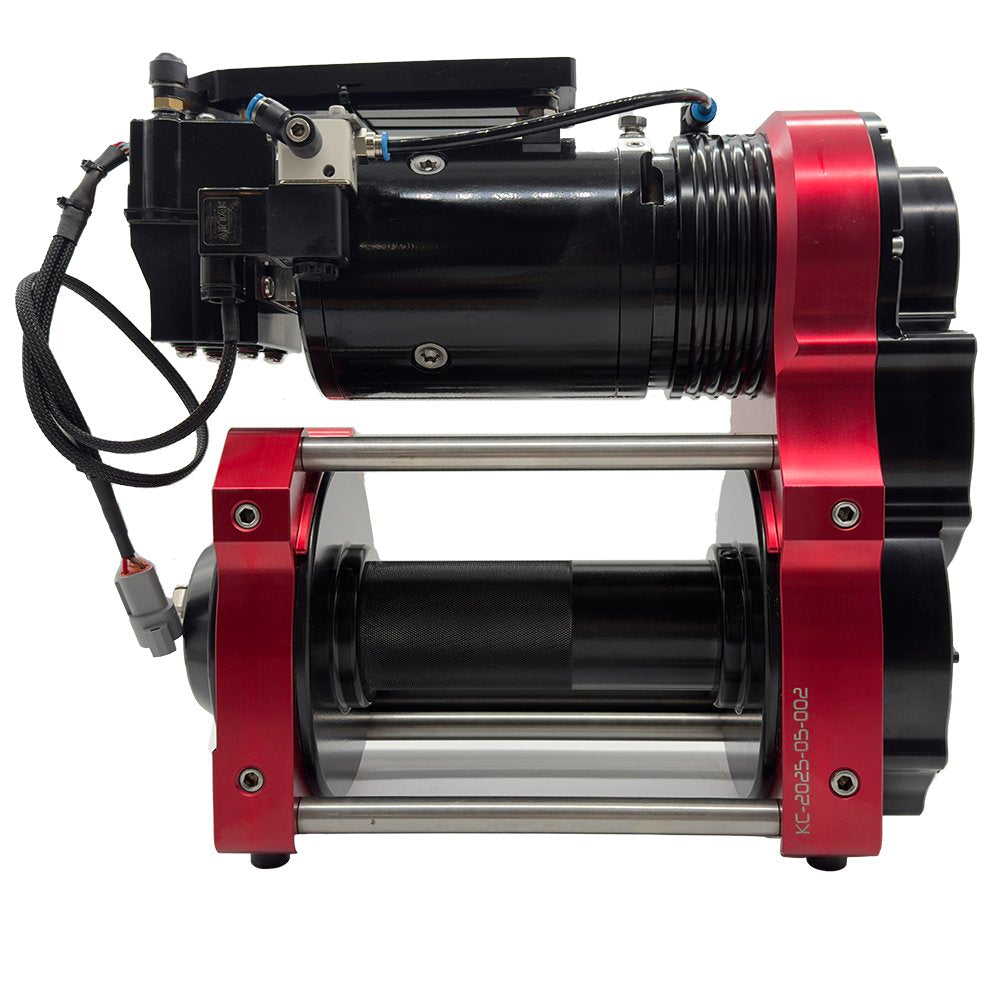

The drum is sealed with high-quality seals at both ends, making the winch fully watertight and capable of operating underwater. Behind these seals, the drum bearings are equipped with free-running ball bearings that are packed with waterproof grease.

Standard Drum:

• The Std drum can hold 30m of 11mm plasma or synthetic rope.
• The Std drum can hold 25m of 12mm plasma or synthetic rope.

Medium (+76mm) Drum:

• The Medium drum can hold 48m of 11mm plasma or synthetic rope.
• The Medium drum can hold 36m of 12mm plasma or synthetic rope.

XL (+203mm) Drum:

• The XL drum can hold 55m of 11mm plasma or synthetic rope.
• The XL drum can hold 48m of 12mm plasma or synthetic rope.
• The XL drum can hold 35m of 14mm plasma or synthetic rope.

Please choose your gearing and motor option from the menu.

The King Cobra is supplied with a rope and a hook. The diameter of the supplied rope depends on the chosen gearing option.  The length of the rope depends on the drum length chosen.

Please see the chart below for the rope size supplied with each model.

Downloads

RED Winches King Cobra User Manual (PDF)

Warranty

Every genuine RED Winch is engineered for extreme performance and backed by a Limited Lifetime Warranty on all mechanical components. RED Winches also provide a comprehensive 5-year (60-month) warranty on electrical components, including the motor, contactor, and switches. This warranty is a testament to their British engineering and commitment to keeping you moving when failure is not an option.
