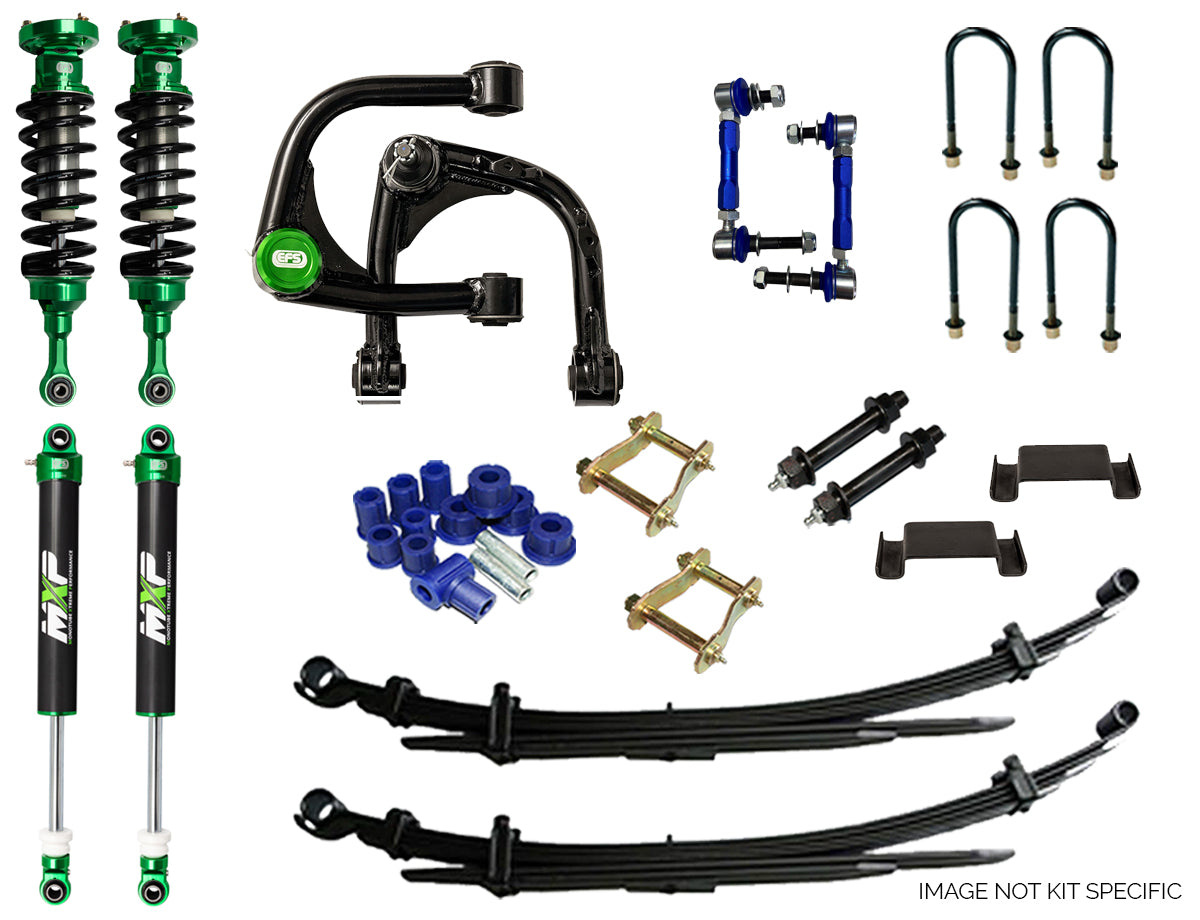

This EFS suspension lift kit delivers a 75mm front and 50mm rear lift for the Ford Ranger Next Gen 06/2022 onwards models.

This kit features EFS 4x4 MXP 2.5" bore monotube shocks with 22-point rebound adjustment. (Shocks include coils.)

Suspension lift kits are designed to maintain factory rake. Feel free to contact us to discuss options for your vehicle.

Fitment Notes

Rear Suspension

• Superior Billet Hanger Bearing Spacer Kit (#55697) only required if you experience driveline vibration


Certification

Some vehicle modifications require LVVTA Certification. The following products in this suspension kit may require LVVTA Certification:

• Adjustable front struts
• Upper Control Arms

This information is a guide only, and we recommend you contact your local certifier in all cases where certification may be required.

Warranty

Each part in this kit is covered by its own manufacturer warranty. View the full warranty details.

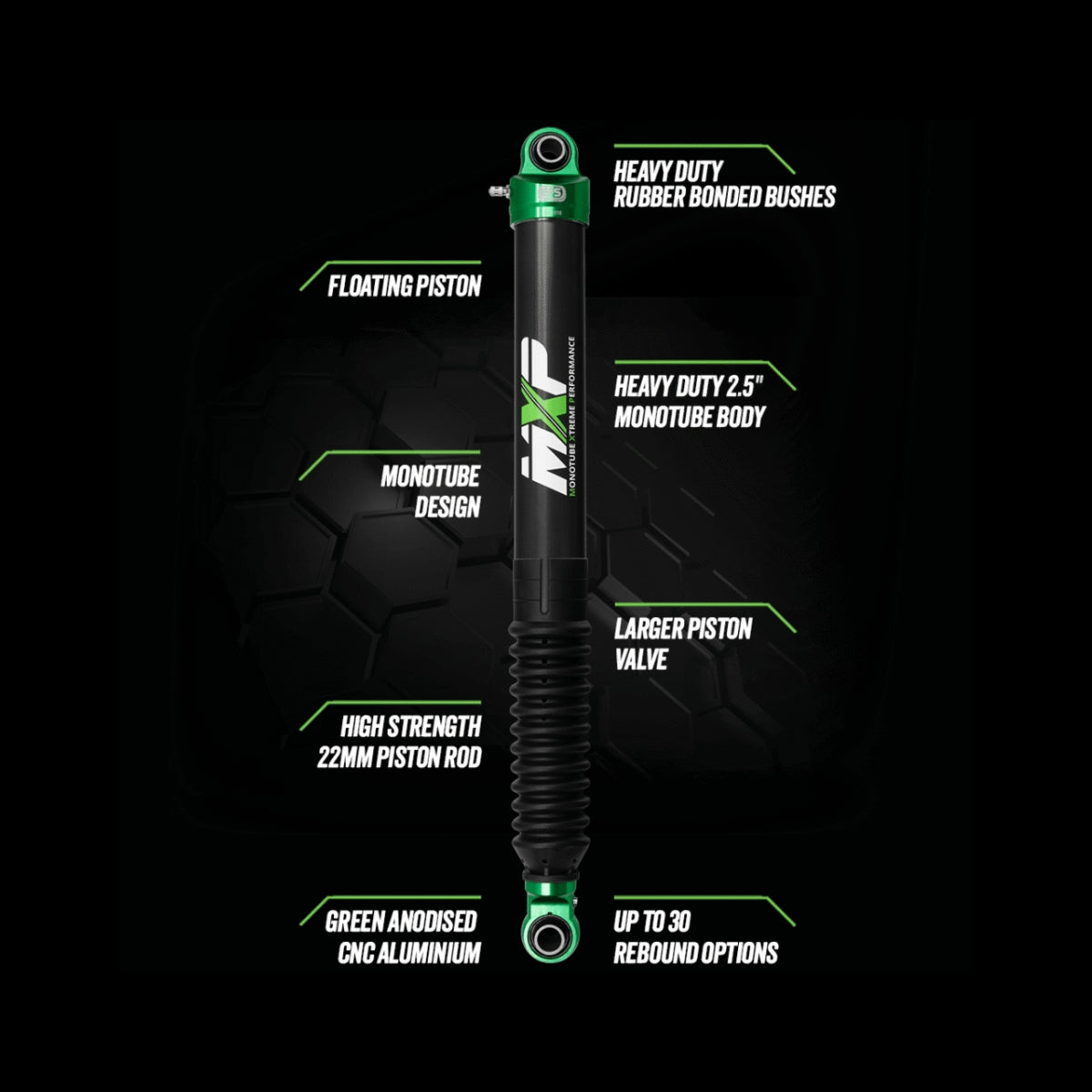

EFS MXP Monotube Shocks

• 2.5" monotube design with floating piston for consistent, reliable damping in all conditions
• High-strength 22mm piston rod built for durability and performance
• Up to 30 rebound adjustment settings to fine-tune ride comfort or off-road control
• No reservoir design for simpler installation and cleaner fitment
• Direct bolt-in replacement for OE suspension - no modifications required
• Engineered for extreme ride control and precision handling.

EFS Upper Control Arms

EFS 4x4 fixed upper control arms allow additional clearance for suspension components and larger tyre sizes.  These suspension arms help restore camber and castor to your 4WD.

• Heavy-duty 4130 tubular chromoly construction with 3-degree castor increase
• OE-style heavy-duty greaseable ball joint
• Rubber bushes
• ABS bracket mounts
• Anodised ball joint cap
• Black powder coat finish


EFS Leaf Springs

Transform your rigid leaf sprung vehicle into a comfortable off-road performer with EFS leaf springs. Designed as a comfort leaf spring that incorporates special features that give the driver a comfortable ride on road and increased control off road, along with increased articulation and clearance.

Specifications

• Manufactured from high-quality grade alloyed carbon spring steel
• Tapered Leaf Ends to reduce the inter-leaf friction and to improve pressure distribution in the load bearing area
• Bolt Clip Liners to reduce noise and friction
• Inter-Leaf Graphite Coating and Leaf Insert Pads to further reduce friction
• Shot Peened & Scragged Tested to reduce stress and promote longevity
• Bolt Clips & Military Wraps to prevent leaf spread and provide safety
• Warranty - 3 year / 100,000 Km Warranty
• Available in 30mm to 80mm raised heights with a slight increase in spring rates over the original equipment.

EFS U Bolts

Made from quality carbon steel with rolled threads to increase strength due to a uniform grain finish and powder-coated for protection against corrosion.

Deep nuts are supplied for safety and strength with flat washers to provide a smooth contact surface area to reduce plate friction.

EFS Bush Kits

EFS Polyurethane Bushes are made from high-quality elastomers, which gives the EFS Polyurethane Bush a high isolating strength and durability. EFS poly bushes have an elastomer rating of 80 Duro to give improved suppleness and grease channels for increased distribution of lubrication properties.

EFS Shackle pins and swing shackles

EFS Shackle Pins and Swing Shackles are engineered to be stronger than the original equipment and greaseable for ease of service.

The products are then case hardened and gold cadmium plated or black oxided for increased strength and corrosion protection.

Superior Engineering Diff Drop

Kit includes all bolts and spacers needed to drop your front diff roughly 25mm. Diff drop brackets are designed to drop the diff lower to fix the cv angle. Manufactured from Aircraft Grade 6000 Series alloy spacers with black anodised finish
