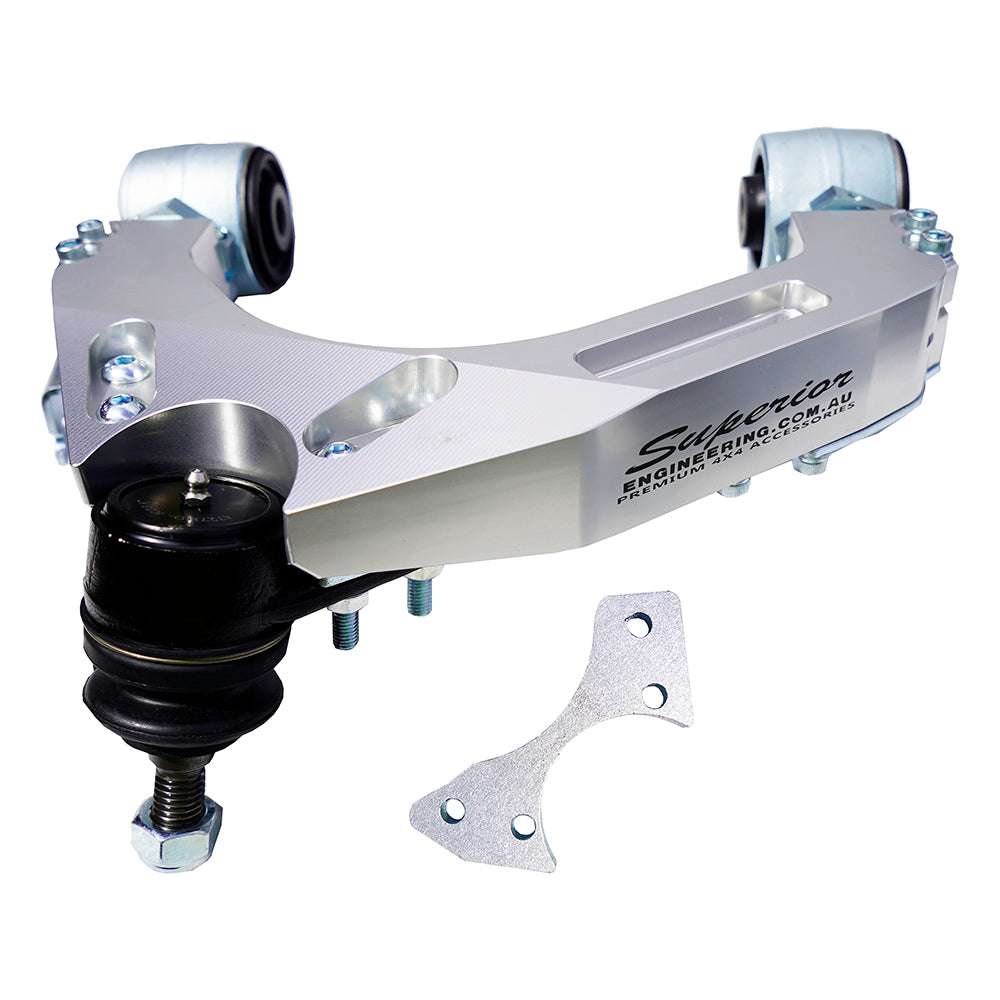

Superior Engineering Billet Series 6061 - T6 alloy upper control arms suitable for the Isuzu D-Max and Mazda BT-50 (07/2020) onwards.

Usage

Designed to increase articulation offering increased off-road performance and restoring wheel alignment geometry after fitting a lift kit to your vehicle.

Key Features

• Designed to increase articulation for improved off-road performance
• Restores wheel alignment geometry after fitting a lift kit
• Helps prevent wheels from lifting off the ground on uneven terrain
• Increases down travel and maximizes coil/chassis clearance
• Allows for greater camber and castor adjustment for better wheel alignment
• Reduces unnecessary wear and tear on suspension components
• Minimises or avoids fender trimming by optimising tire placement in the wheel arch
• Made from CNC machined aircraft-grade 6061-T6 aluminium alloy
• Equipped with double clamped high tensile steel greaseable adjuster bosses
• Features high-angle greasable OE style ball joints for up to 20 degrees more travel

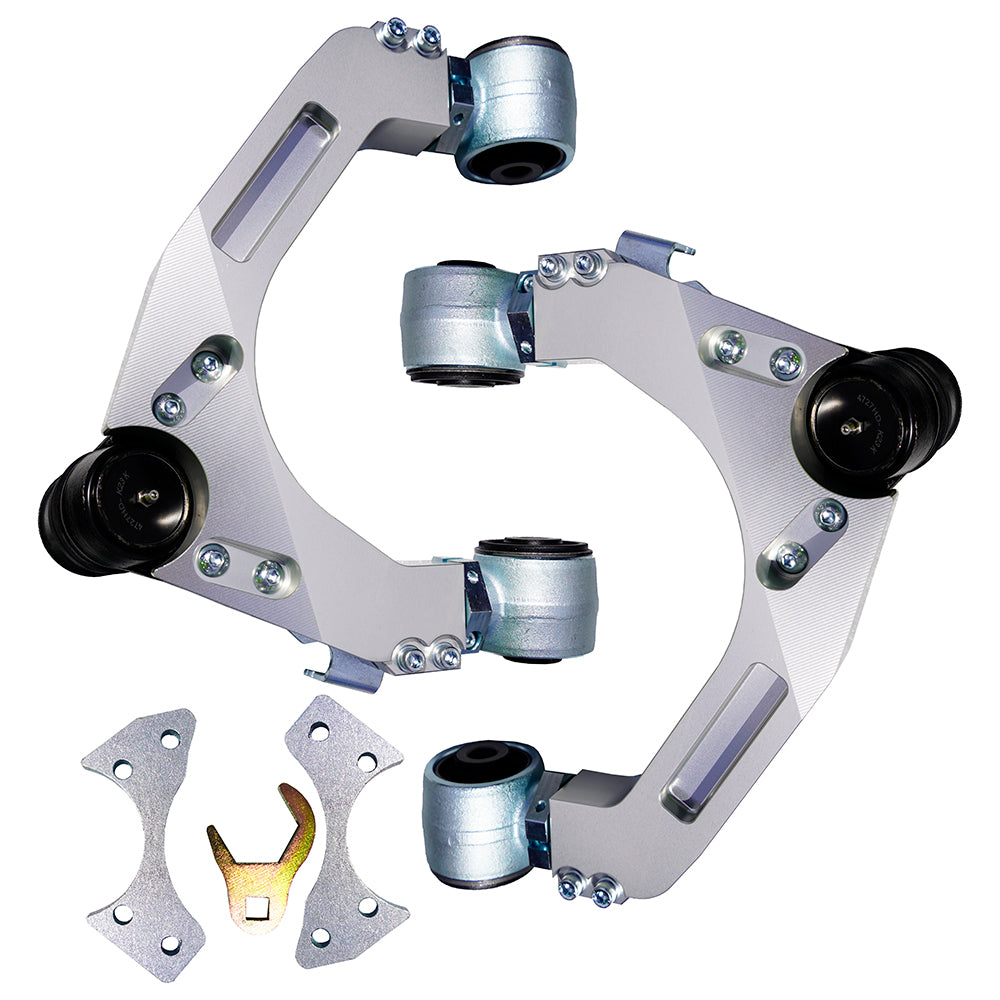

Includes:

• 2 x Superior billet alloy UCAs
• 4 x high tensile steel rod ends
• 4 x double adjuster clamps
• 2 x high-angle greasable OE style ball joints
• 4 x OEM style rubber bushes
• 1 x fitting kit with all required bolts, washers and fittings

Fitment

Due to the range of travel in these UCAs, recommendation is to use only the highest quality ball joints, please contact us for suitable replacement parts.

Certification

Some vehicle modifications require LVVTA Certification. The following products may require LVVTA Certification when fitted:

• Adjustable drag links and drop drag links
• Adjustable front struts
• Adjustable panhard rods
• Adjustable rear lower control arms
• Adjustable rear upper control arms
• Adjustable tie rods
• Adjustable torque arms
• Diff drops
• Dropboxes
• Extended shackles
• Radius arms (in most instances)
• Upper control arms (UCAs)

This information is a guide only, and we recommend you contact your local certifier in all cases where certification may be required.
