Superior Engineering Billet Series 6061 - T6 alloy 25mm diff drop kit suitable for Isuzu D-Max/Mazda BT50 2020 onward.

NOTE: Suitable for 4JJ3 engine only

Usage

Diff drop brackets are designed to drop the diff lower to fix the cv angle when fitting a lift over 3".

Key Features

• Relocates your front diff down 25mm and forward to alleviate the stress on your CVs
• Kit includes all bolts and spacers needed to drop your front diff suitable for a 4-5" lift
• Manufactured from 6061 billet alloy
• Designed to protect your CVs through your full range of steering and suspension travel
• Suits OE crossmember – no modification required
• Simple bolt-in design that includes all required hardware for installation.

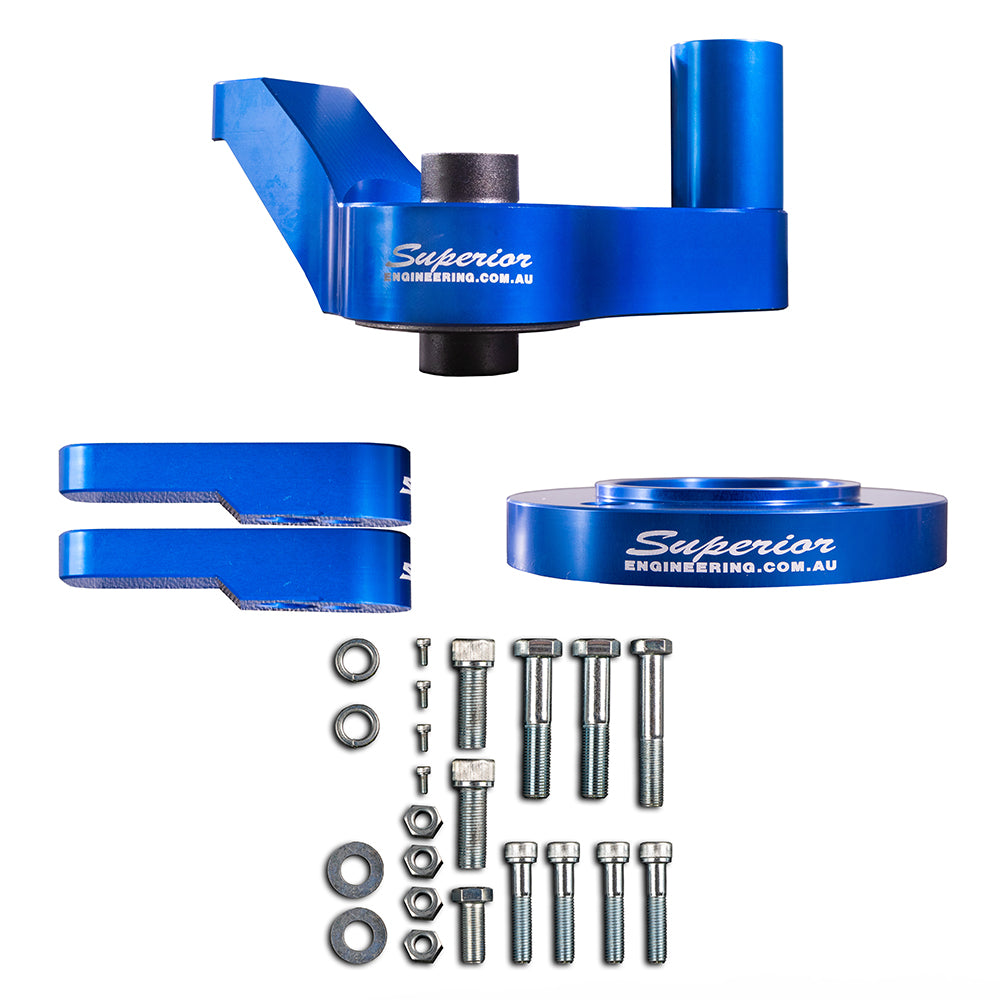

Includes:

• 1x diff drop bracket
• 1x diff drop spacer
• 2x diff drop relocation chassis blocks
• 1x tailshaft spacer
• All required hardware for installation


Fitment Notes

This diff drop kit is only suitable for models with the 4JJ3 engine.

Certification

Some vehicle modifications require LVVTA Certification. The following products may require LVVTA Certification when fitted:

• Adjustable Drag links and Drop drag links
• Adjustable Front Struts
• Adjustable Panhard rods

• Adjustable Rear lower control arms
• Adjustable Rear upper control arms
• Adjustable Tie rods
• Adjustable Torque arms
• Diff drops
• Dropboxes
• Extended shackles
• Radius arms (in most instances)
• Upper control arms (UCA’s)

This information is a guide only, and we recommend you contact your local certifier in all cases where certification may be required.

How to Install Superior 25mm Diff Drop Kit - Isuzu D-Max and Mazda BT50 2020 Onwards
