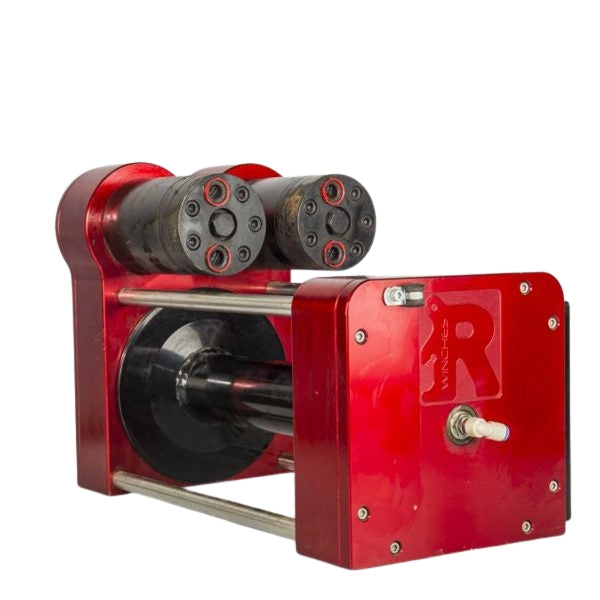

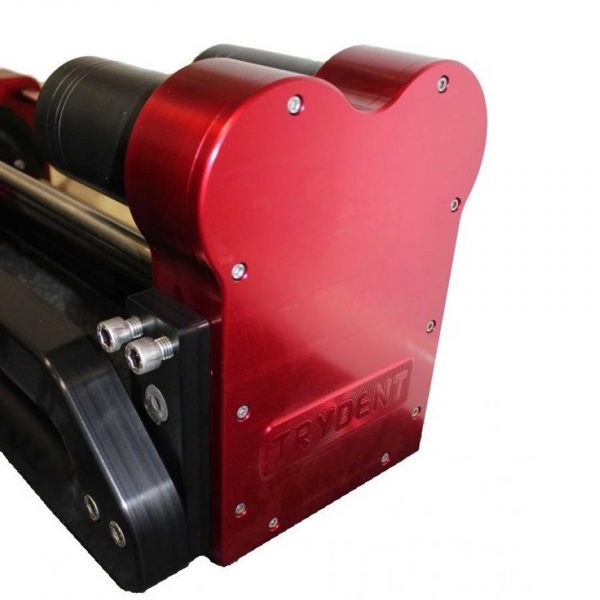

The only twin motor hydraulic competition winch available off the shelf ever made.

Built for winch challenge and heavy 4WD use, the Trydent runs on hydraulics rather than electrical power. This means line speed stays much higher under high to full load than a comparable electric winch. The system is pressure regulated, so damage from stalling the winch under load is unlikely. Duty cycle far exceeds that of an electric winch, too, so pulling yourself or others out of a track all day is an achievable feat.

Features

• Dual 75CC Adan hydraulic motors
• Winch body CNC machined from solid high-grade heat-treated aerospace aluminium
• Full drum disconnect, air-operated freespool
• Dual motor configuration allows true twin speed winching when plumbed in a series/parallel configuration
• Engineered drum supported by precision-sealed bearings
• XL Drum is 75mm wider than the standard drum
• Black and red anodising finish

Key Specs

• Line speed unloaded: Up to 200 FPM
• Rated line pull: Approx 13000 LB
• Gear ratio: 405:1
• Motor: 100cc x 2
• Cable capacity: 12 mm x 52 m rope


Winch rope, freespool air solenoid or manual air switch are sold separately.
