Build your own winch products are built to order at Red Winches in the UK. Please allow around six months from the date of order. Feel free to contact us to confirm lead time or to discuss configuration options before ordering.

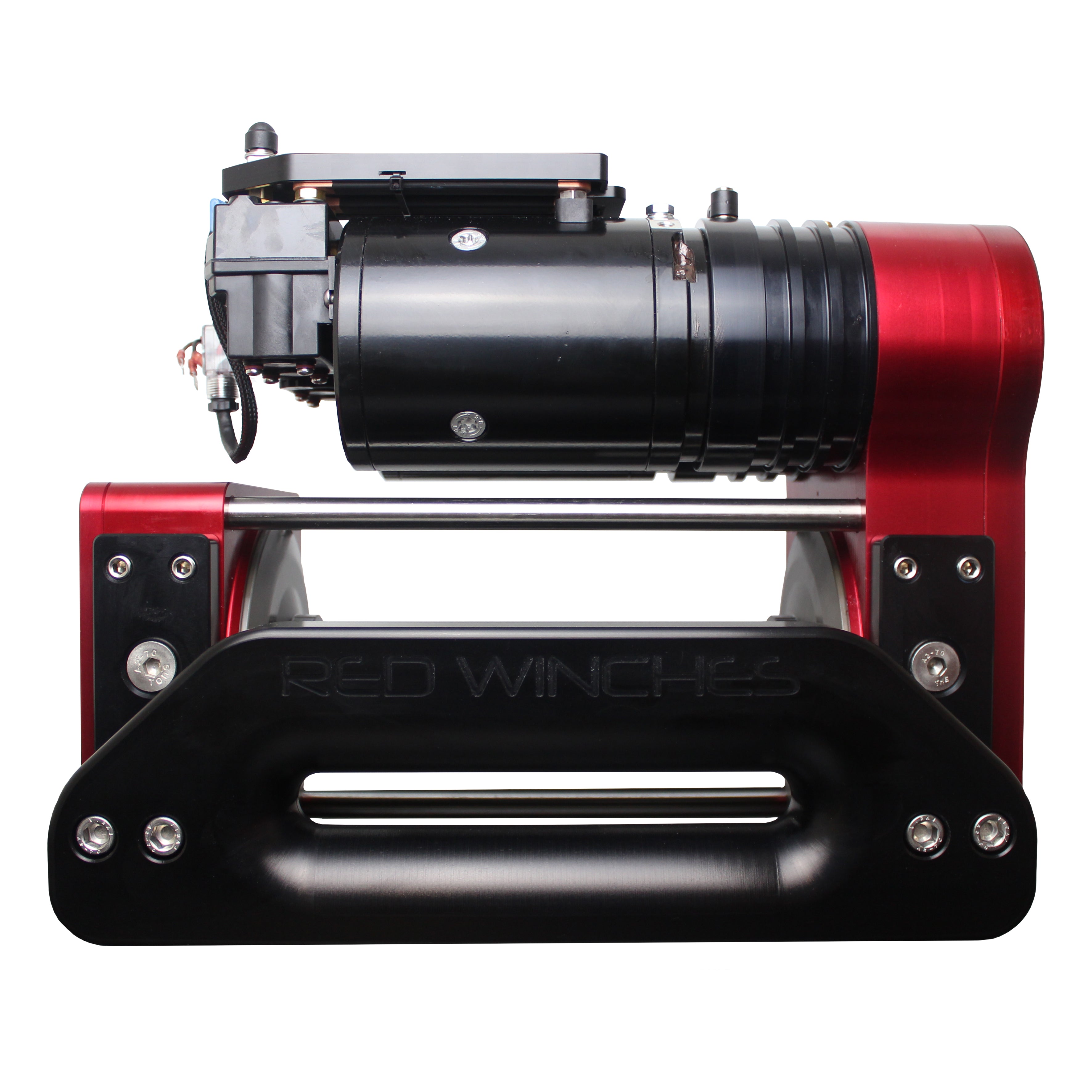

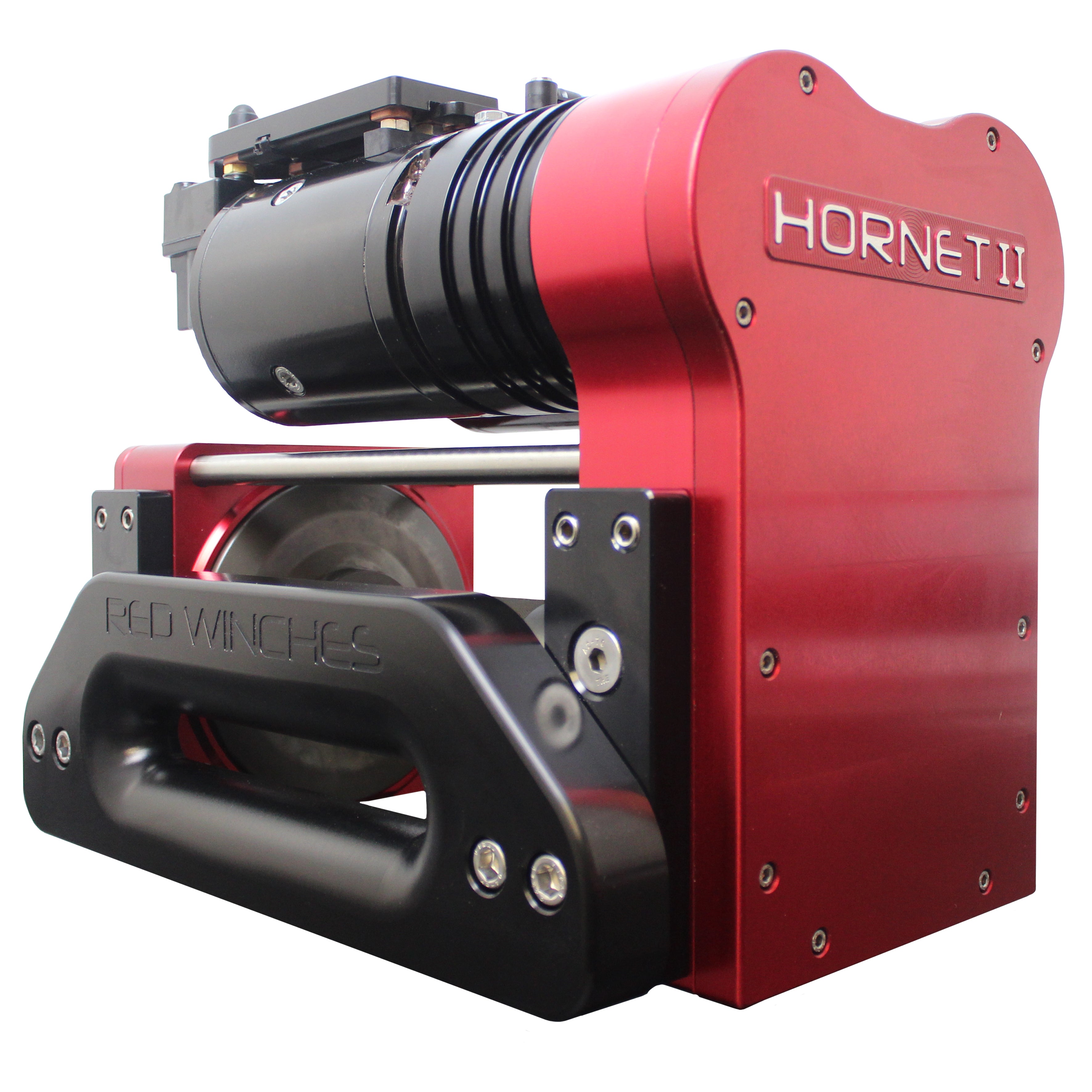

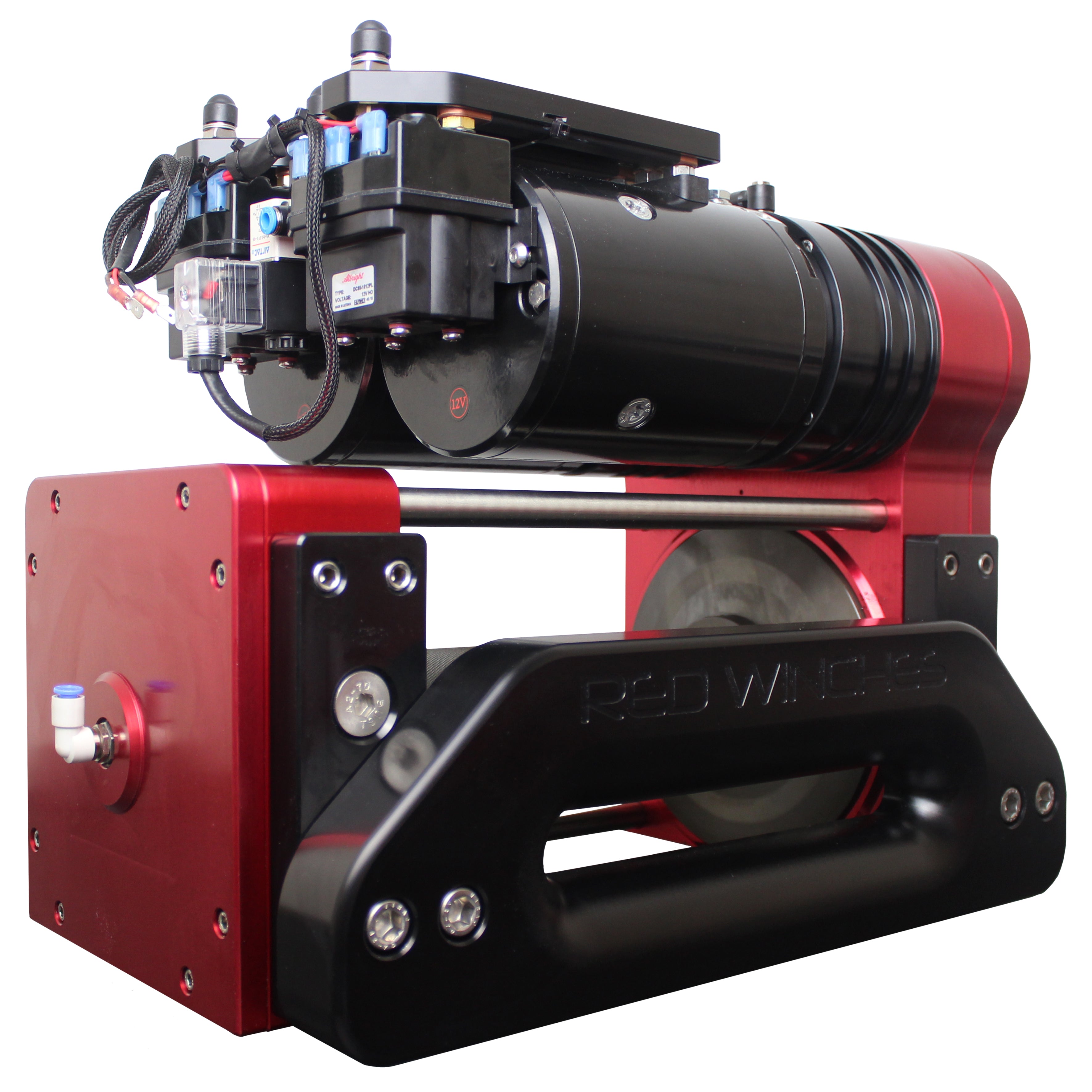

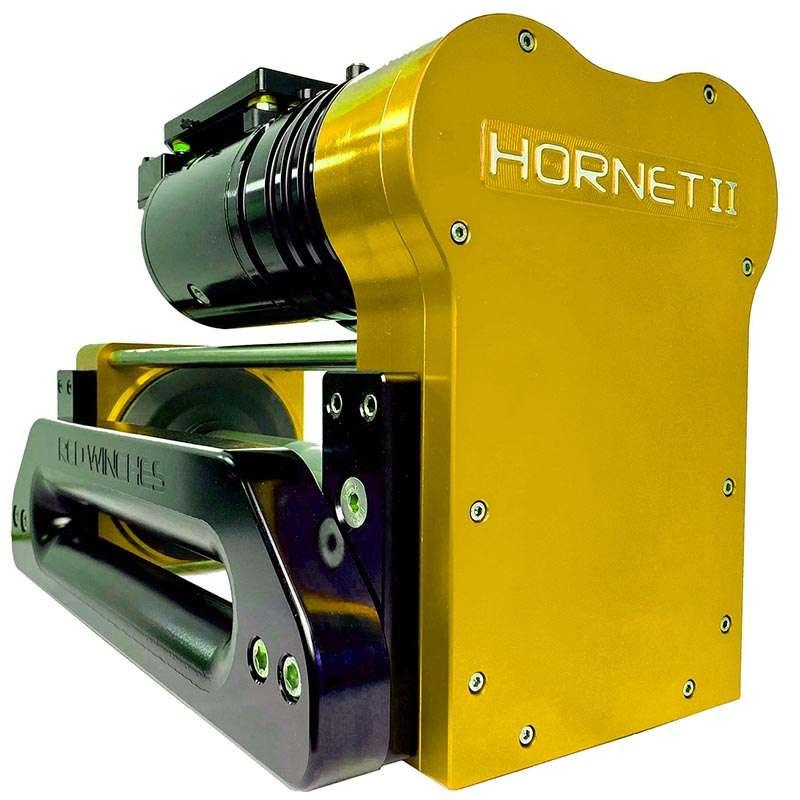

The Hornet2 is a twin-motor electric winch developed by RED Winches for the 4x4 competition and motorsport markets, with features suited to high-performance motorsport events.

Included

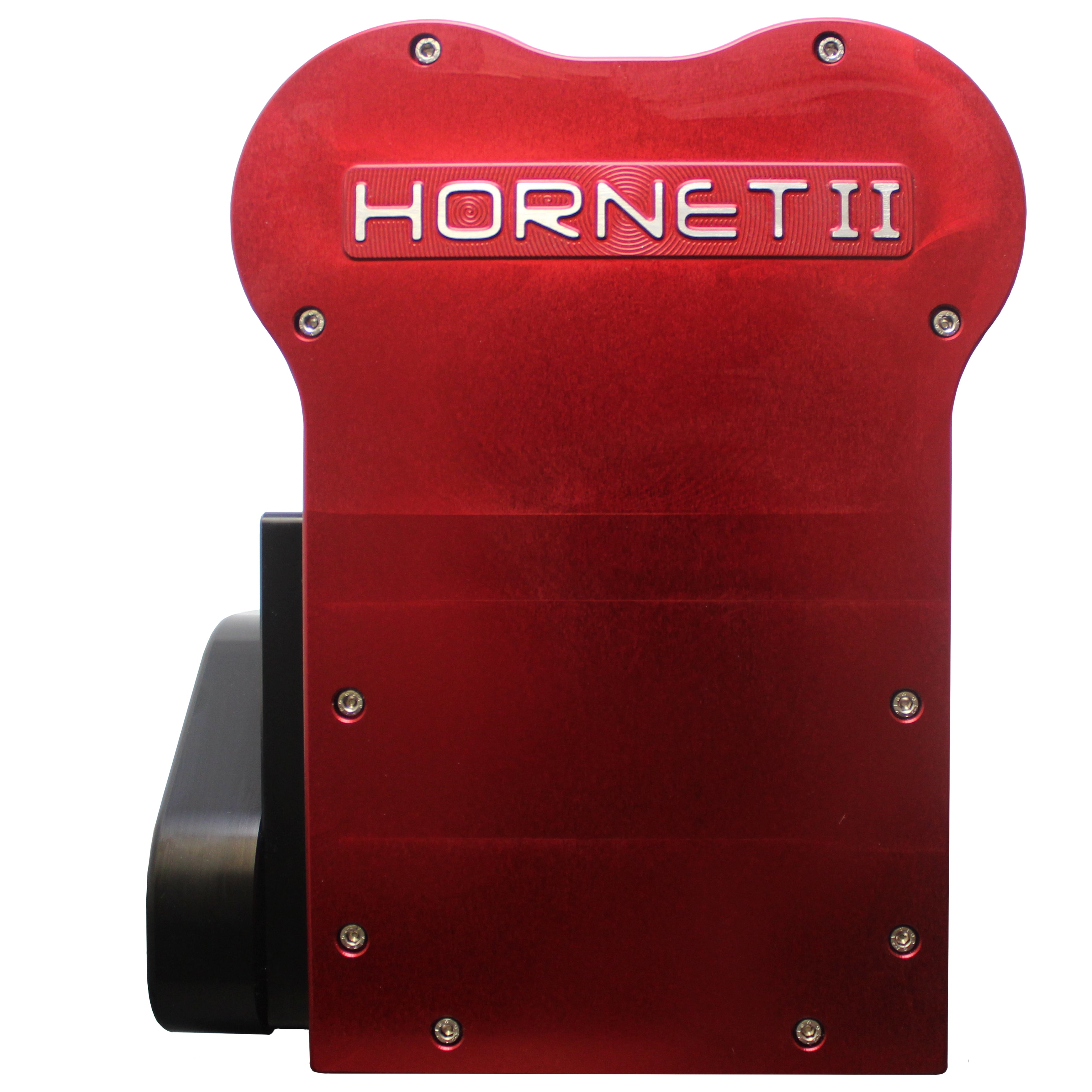

• Hornet2 twin motor winch with anodized CNC-machined body

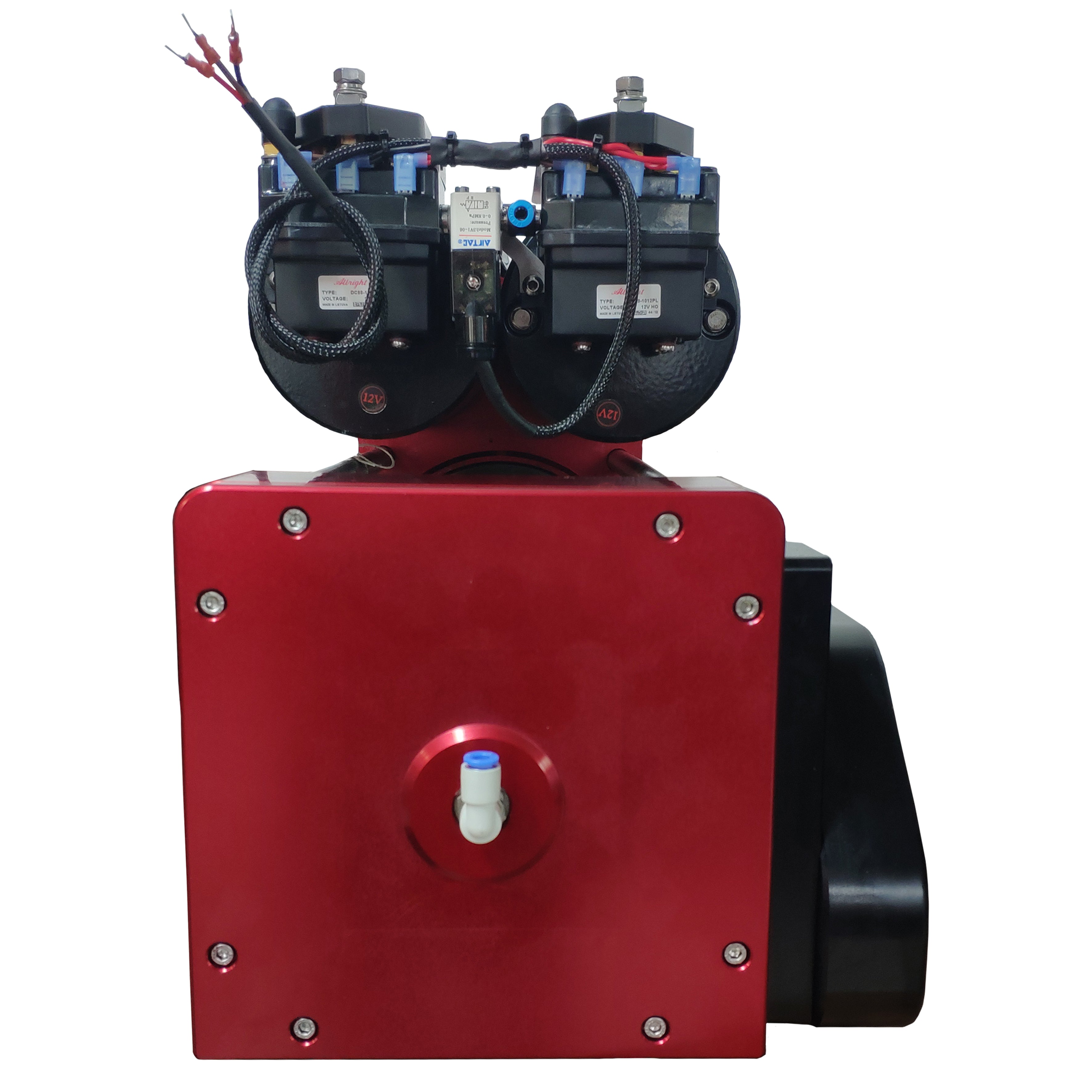

• Integrated solenoid for air brake operation
• High-efficiency copper bus bar motor connections

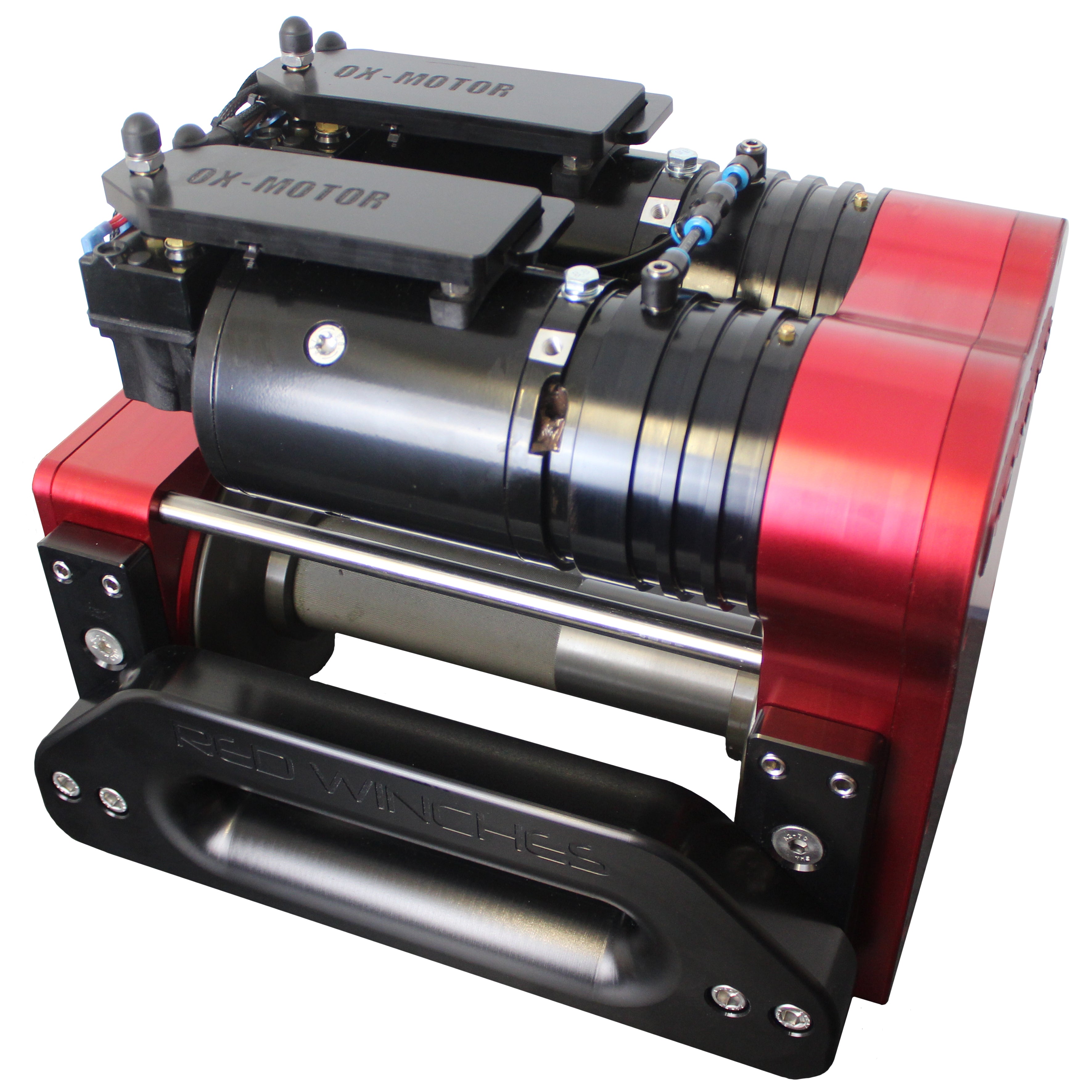

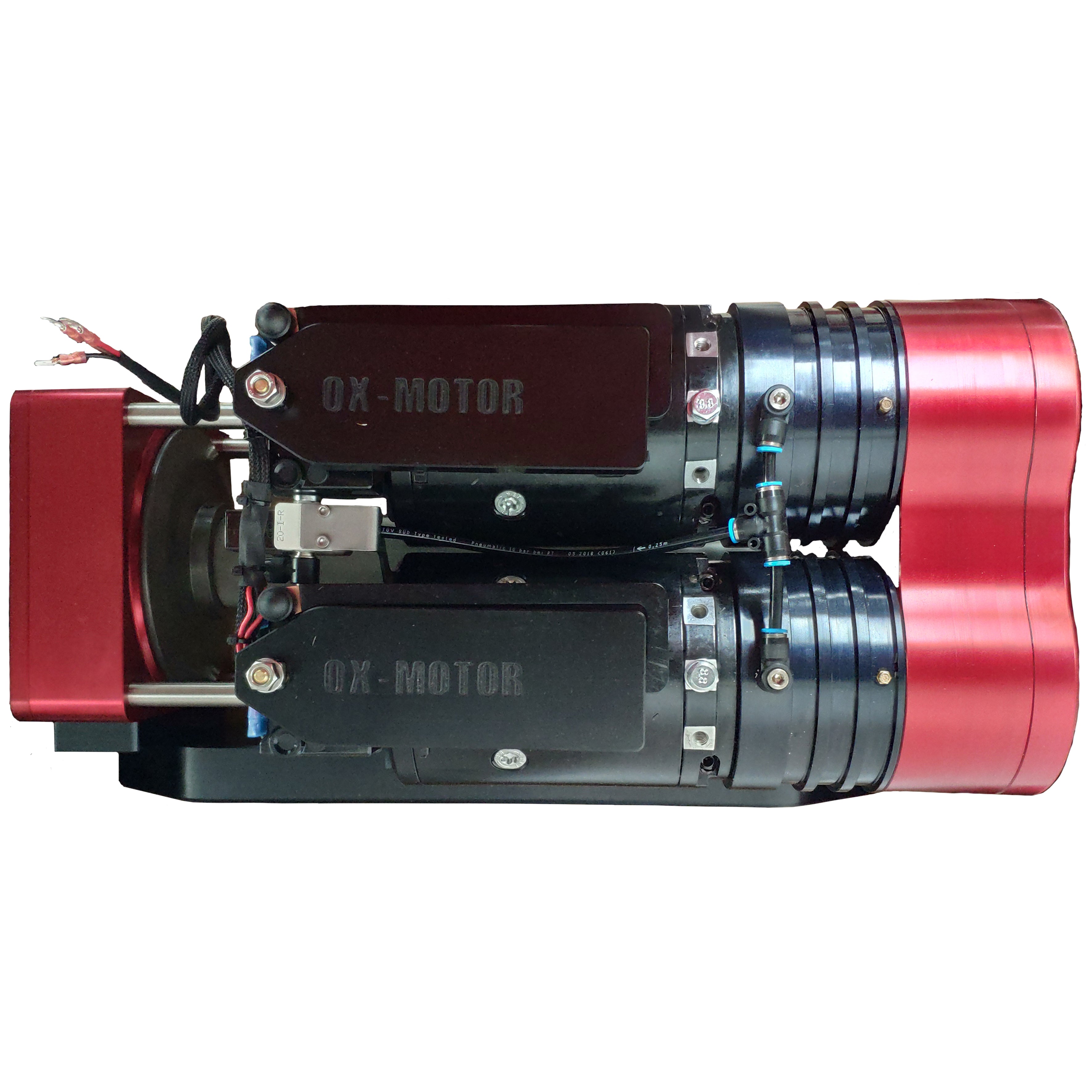

• Ox Motors with Albright DC182 Heavy Duty Ultimate solenoids
• Choice of aluminum or stainless steel fairlead
• Plasma Lock

Key Features

• 14hp Twin Motor Power – Unparalleled performance for the most demanding conditions.
• Full drum disconnect freespool design
• CNC Machined Aerospace Aluminum Body – Ensuring maximum durability and minimum stress.
• Air Brake System – A patented system for superior control and stopping power. Read More.
• High-Efficiency Electrical Setup – Featuring premium copper bus bars and Albright solenoids.
• Customisable Fairlead Options – Choice of aluminum or stainless steel fairlead.
• Exceptional Pulling Capacity – Standard gearing supports up to 4500kg (9920 lbs); Overdrive gearing up to 4000kg (8818lbs)
• High-Speed Operation – Up to 90m/min (295 ft/min) with Overdrive gearing for rapid winching.

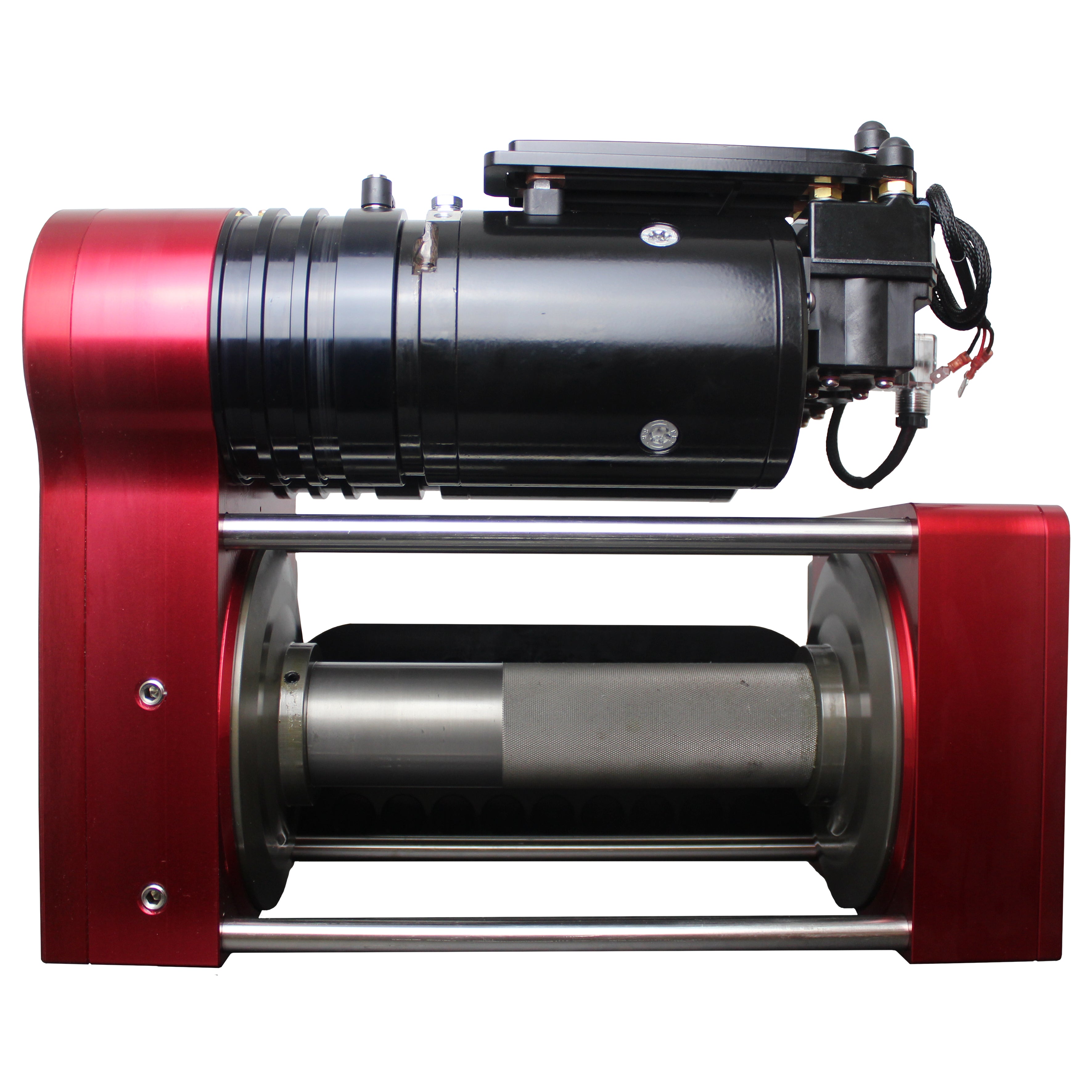

Standard Drum:

• The Std drum can hold 55m of 11mm plasma or synthetic rope.
• The Std drum can hold 45m of 12mm plasma or synthetic rope.
• The Std drum can hold 40m of 14mm plasma or synthetic rope.

XL Drum:

• The XL drum can hold 78m of 11mm plasma or synthetic rope.
• The XL drum can hold 67m of 12mm plasma or synthetic rope.
• The XL drum can hold 50m of 14mm plasma or synthetic rope.

These figures are the maximum amount of rope when precision-wound. We always recommend using 15% less rope to allow for line crossing and bunching.

High-Speed, High-Power Performance

• Standard Gear Set: Covers 30 metres in 25 seconds — equivalent to 72 metres per minute (236 feet per minute).
• Overdrive Gear Set: Increases line speed to cover 30 metres in 22 seconds — equivalent to 82 metres per minute (268 feet per minute).
• Drum RPM: Standard gears 202 RPM, Overdrive Gears 237 RPM
• Overvolting Option: Allows 24V operation on 12V motors for extreme power and speed (use with caution)

Gearbox

• Straight-Cut Gears: Manufactured from 655-M13 nickel chromium-molybdenum steel, case hardened to 1100 N/mm².
• Grease Lubrication: Easier field servicing compared to oil-based systems.
• Quick Access Design: Gearbox cover removal enables easy servicing in just five minutes.

Important Note: A vehicle with driver has to be 1800kg or less for overdrive gear set to work successfully.

Downloads

Weight Information

• Standard Drum – Single Motor = 37 kg | Shipping weight = 43.5 kg
• Medium Drum – Single Motor = 39.5 kg | Shipping weight = 46 kg
• Medium Drum – Twin Motor = 49.5 kg | Shipping weight = 56 kg
• XL Drum – Single Motor = 45 kg | Shipping weight = 51.5 kg
• XL Drum – Twin Motor = 55 kg | Shipping weight = 61.5 kg
