Build your own winch products are built to order at Red Winches in the UK. Please allow around six months from the date of order. Feel free to contact us to confirm lead time before ordering.

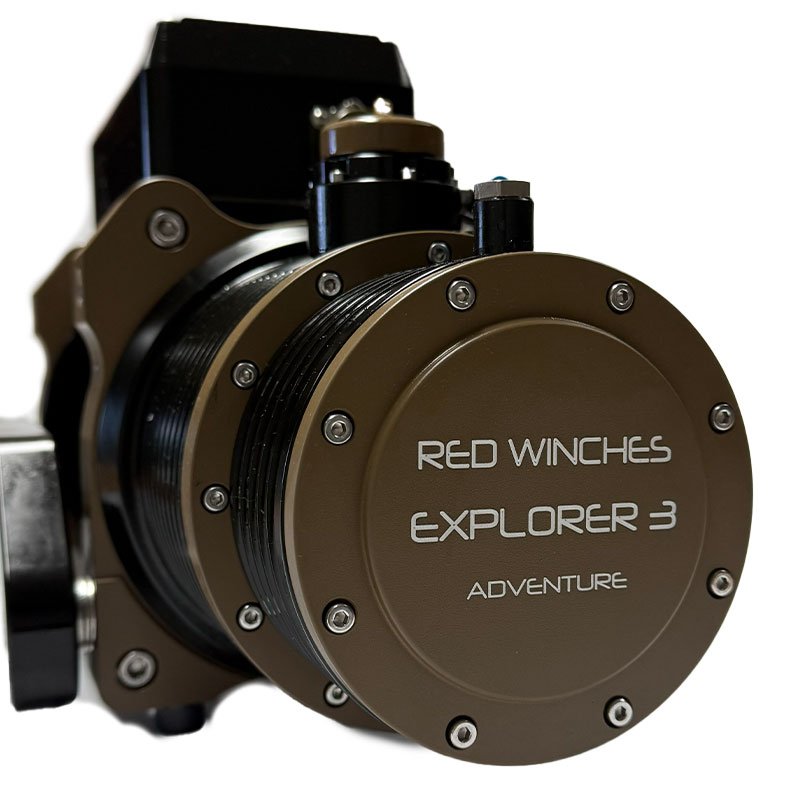

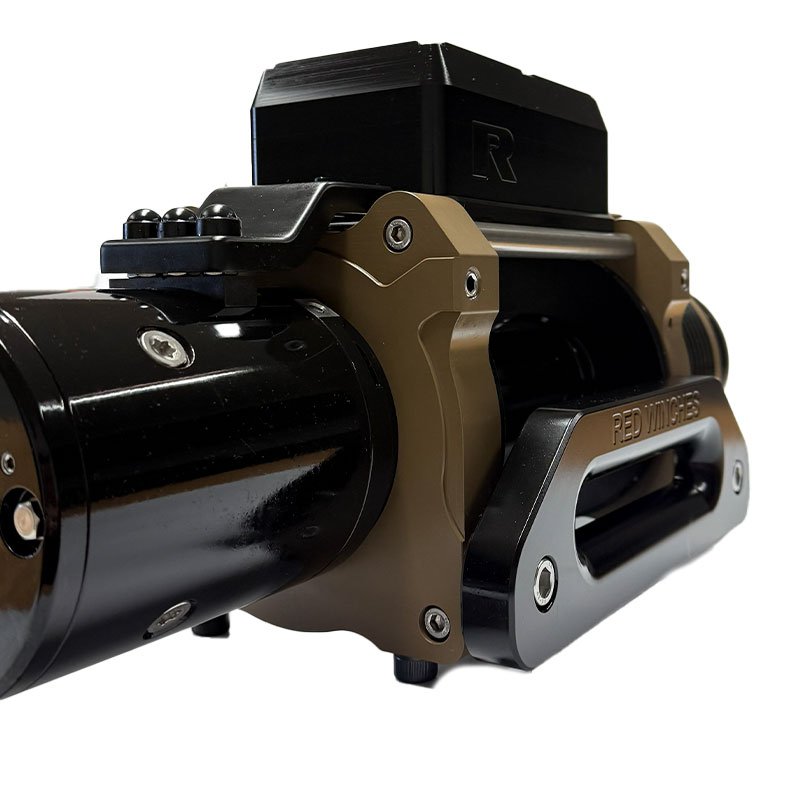

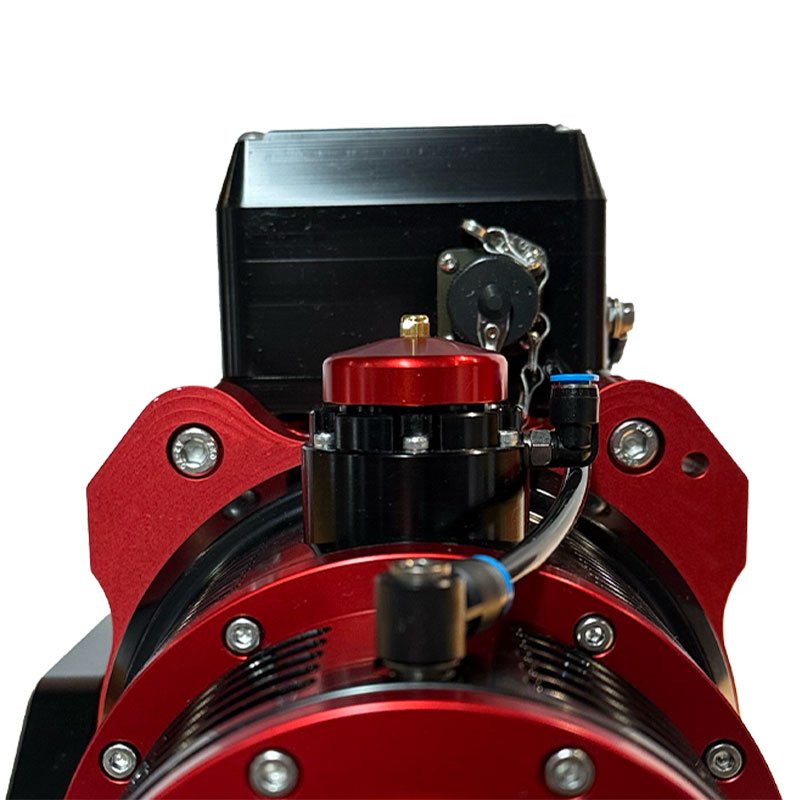

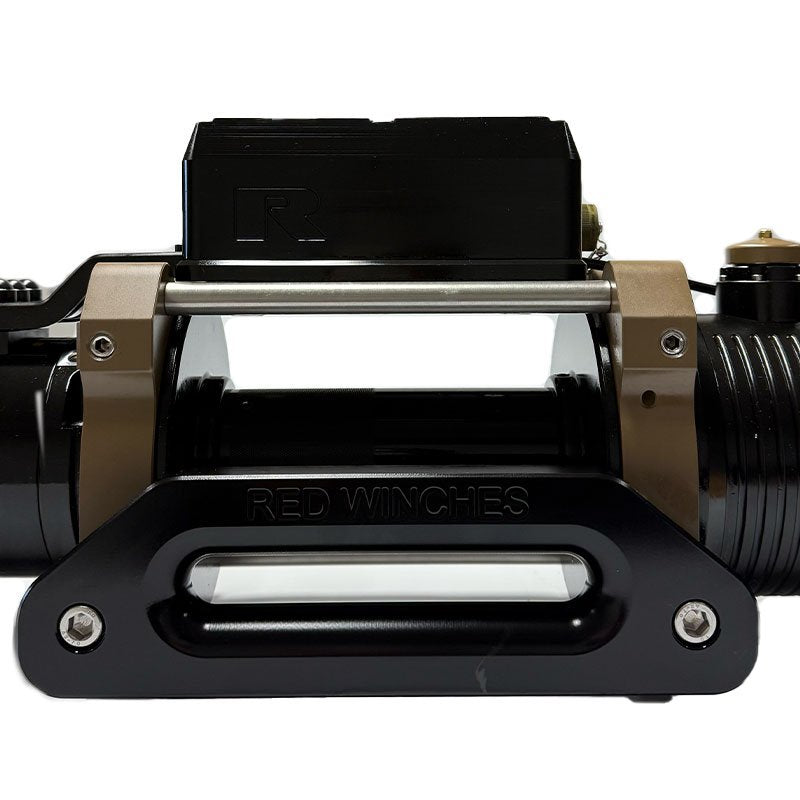

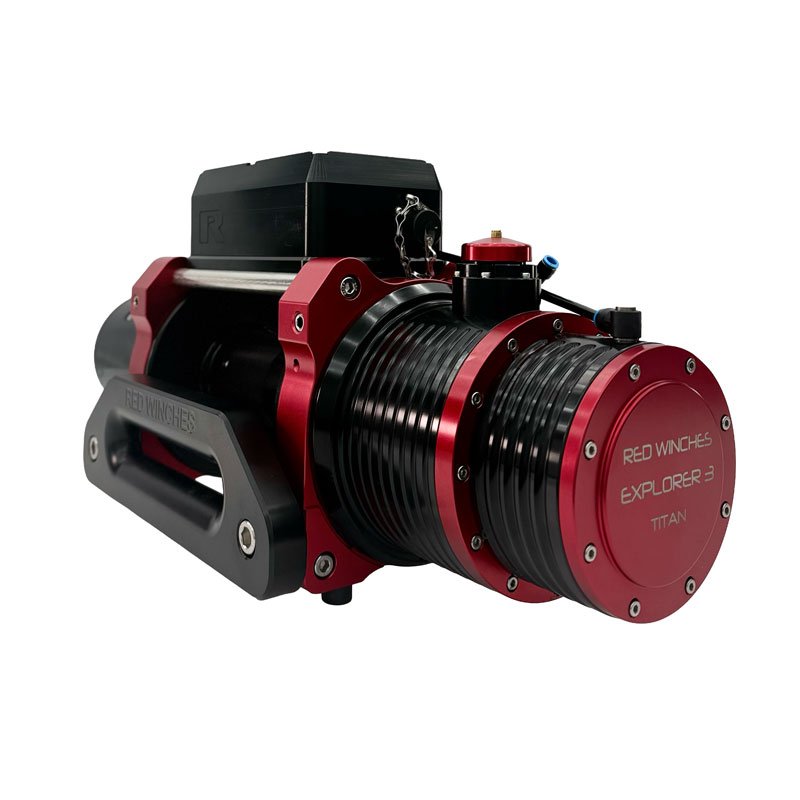

The RED Winches Explorer3 electric winch is a compact, powerful, low-line winch built for offroad vehicle recovery.

Manufactured from solid billet aluminium, the Explorer3 shares the same high engineering standards as all RED Winch products.

Included

Explorer3 Winch:

• Rope with hook – see Rope & Hook tab for rope details
• Plasma Lock
• Air Solenoid & Air Freespool Switch
• Wireless Hand Controller
• 8.8 grade mounting bolts and washers x 4
• 3m of 6mm airline
• Manual isolator switch

Power cables:

• 2M x 50mm² negative cable with lugs
• 0.4M x 50mm² and 1.6M x 50mm² positive cables with lugs

The Explorer3 Winch offers two gearing options, each designed to suit different recovery needs, providing varying pulling capacities and line speeds:

Adventure Gear Set
Pulling Capacity: 5,500kg (12,000 lbs)
No Load Line Speed: 12.9 m/min (42.32 ft/min)
Amp draw at 5,500kg = 362 amps (12v)

Titan Gear Set
Pulling Capacity: 7,500kg (16,500 lbs)
No Load Line Speed: 10.6 m/min (34.78 ft/min)
Amp draw at 7,500kg = 368 amps (12v)

Durable and Easy to Service Gearbox

The gearbox is engineered for maximum strength, power, and ease of maintenance. Manufactured from chromium molybdenum steel and case-hardened for superior strength (up to 1230 N/mm²), it ensures exceptional durability. The gearbox uses semi-liquid grease rather than oil, making it easier to service, whether in the workshop or during an overlanding adventure.
