Full extension, 150kg rated, Quick-release innovation

The KUFU Drawer System Heavy Duty Fridge / Cargo Slide adapts to other drawer brands or can be fixed directly to a vehicle floor or tray back using the KUFU Drawer System stacking kit (sold separately).

Built on a composite 1400mm drawer base with Catch and Click innovation, this one-handed slide makes mounting straightforward while providing a solid, secure storage solution for fridge/freezers and other items at full extension.

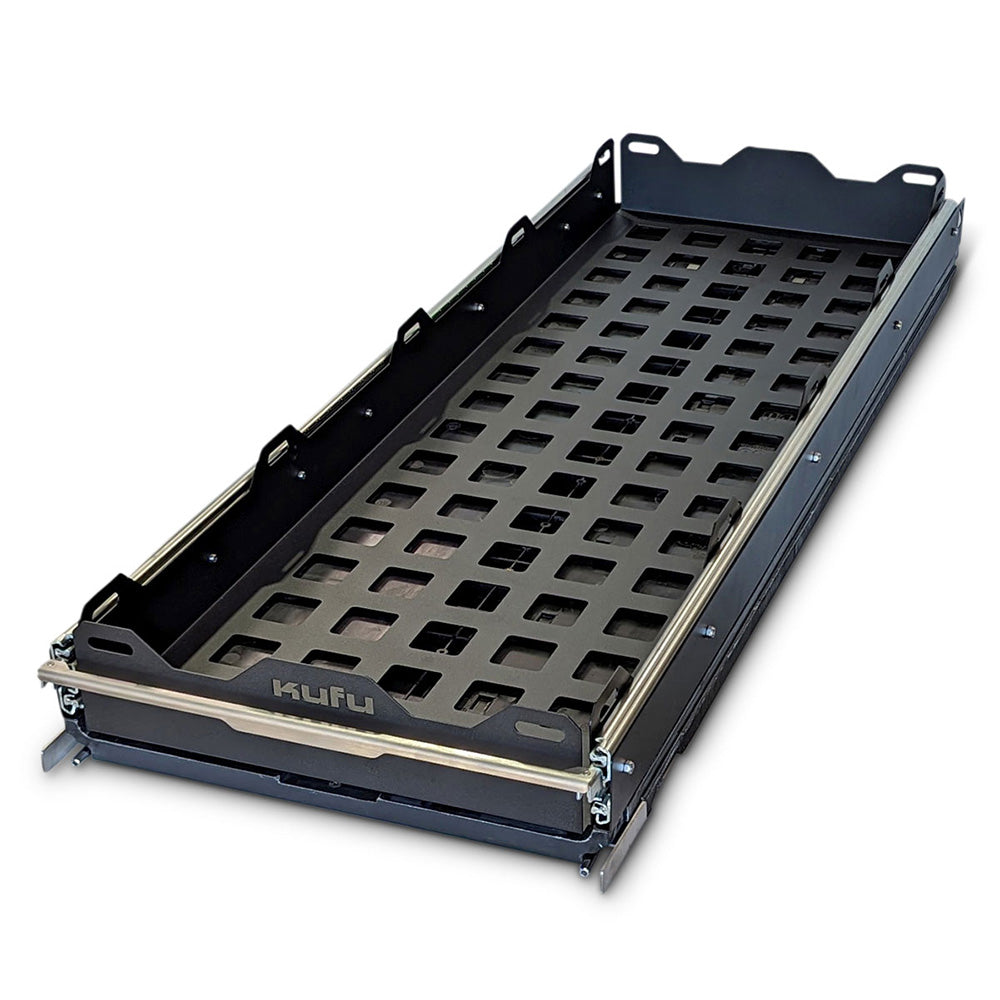

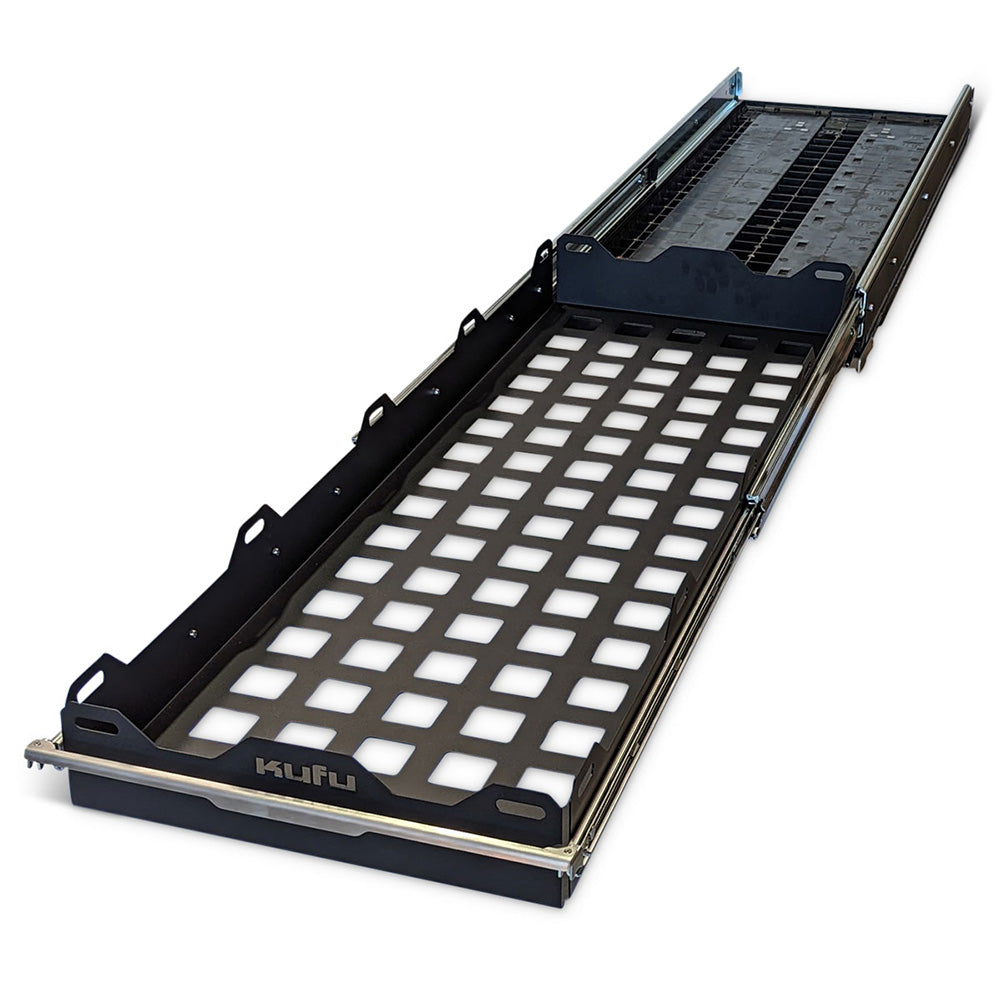

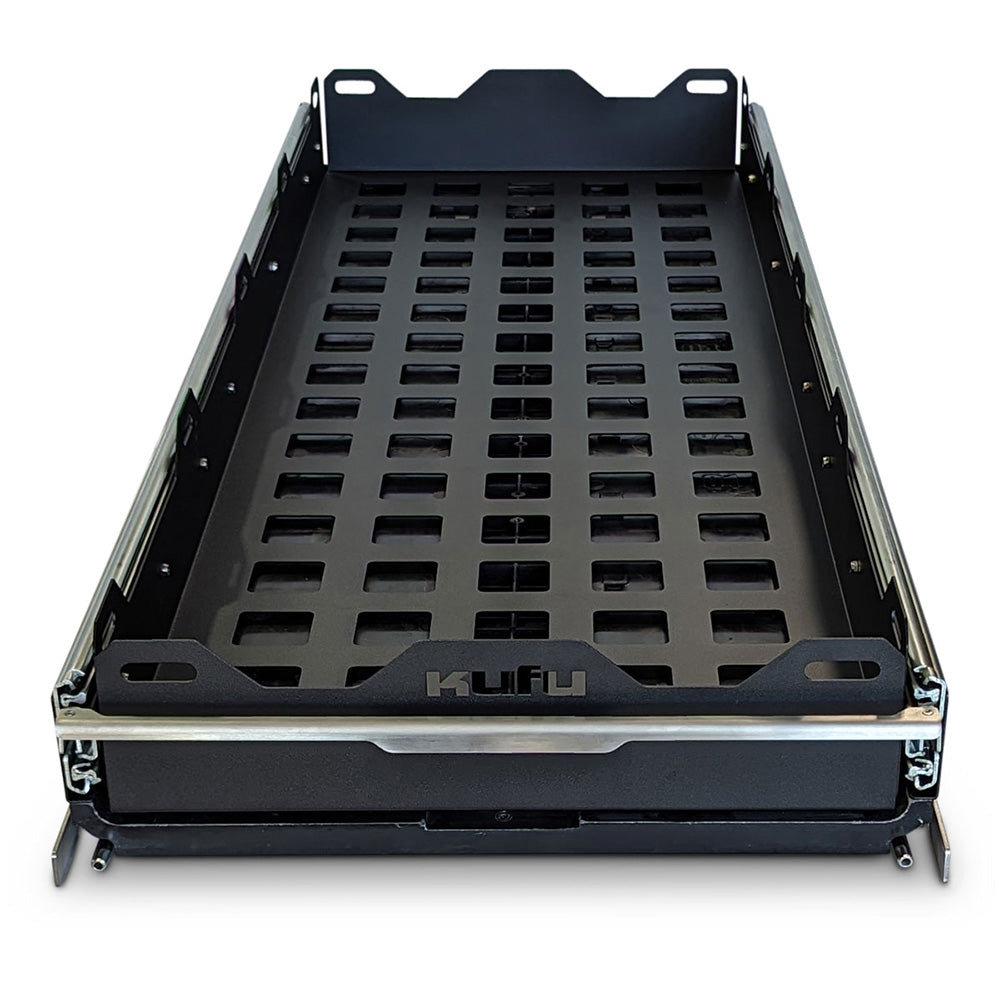

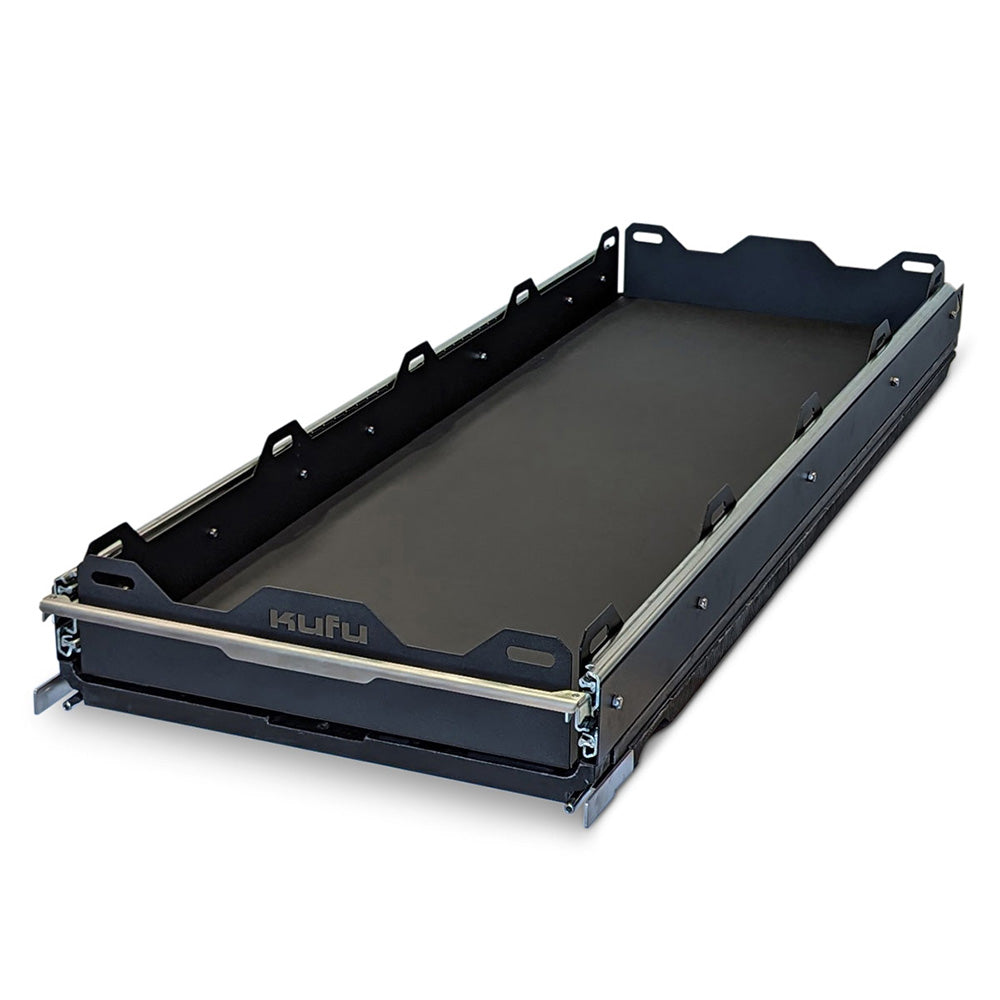

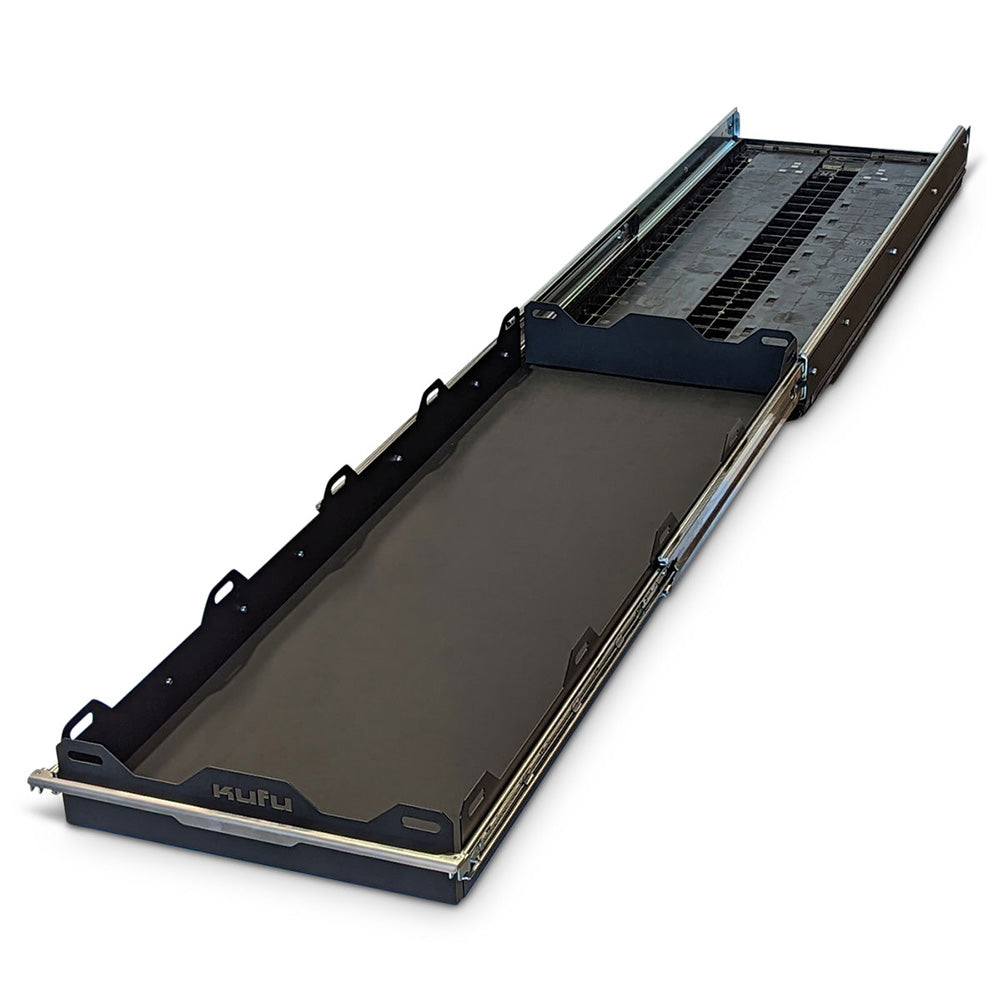

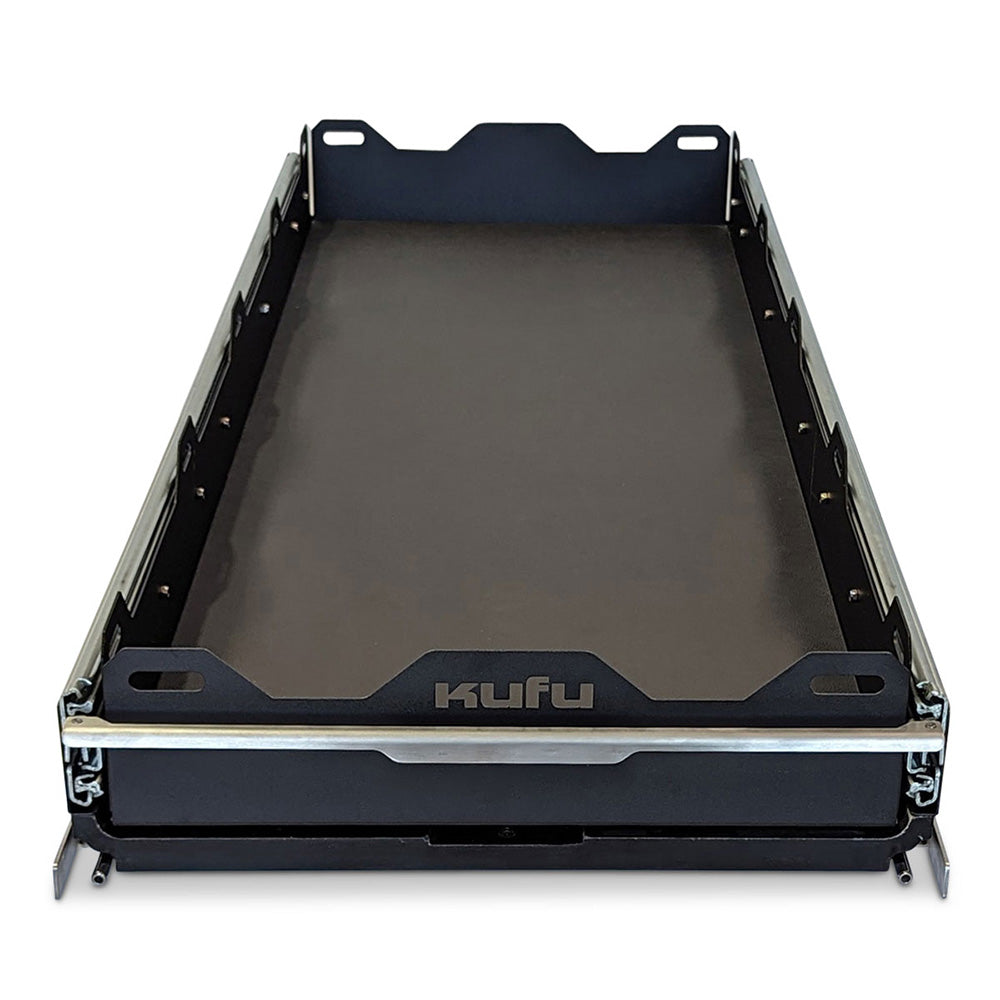

The folded steel tray is perforated to reduce weight and covered by a durable, non-slip rubber-topped plastic sheet. The tray floor sits 36mm from the underside base, raising fridge height by 36mm, or 40mm with the included TPE anti-slip ABS-backed base.

• 100% slide extension
• Approx. 36kg unit weight
• 150kg distributed load capacity
• Includes drop-in premium TPE anti-slip ABS-backed base

Dimensions

• Internal tray: 1346mm L x 456mm W (note lock nuts)
• Tray wall height: 110mm
• External: 1400mm L x 198mm H x 510mm W

About the KUFU Drawer System

The KUFU Drawer System is a modular vehicle storage solution built around patented Catch-and-Click™ technology - a tool-free bracket system that allows fast installation, removal, and reconfiguration in seconds.

Designed in Australia and compliant with ADR42/05 and ADR69/00, the system is suited to recreation, trades, defence, medical, and fleet applications. Compatible with SUVs, tray tops, utility bed trucks, vessels, and aircraft.

Winner of the Australian Good Design Award 2023. Distributed across the USA, Europe, Baltic states, and Scandinavia.

Catch-and-Click™ Quick Release

Each drawer or slide connects to a Catch-and-Click™ Bracket Kit. No tools required - fit, swap, or remove a drawer in seconds. The system is stackable and interchangeable, allowing multiple configurations from the same platform.

Universal Mounting Platform

Mounting platforms are not vehicle-specific, making the system straightforward to transfer between vehicles - useful for fleets or when upgrading.

Dual Cab Utility Beds:

• 1400mm platform - minimum bed length 1445mm (Japanese, Chinese & US dual cabs)
• 1700mm platform - minimum bed length 1745mm (LWB US & Japanese extra cabs)

Tray Backs, Canopies & Trailers:

• Three platform lengths available - 1050mm, 1400mm, and 1700mm

SUV & Wagon Vehicles:

• Universal 1050mm mounting platform with vehicle-specific bracket and fastener kits
• No-drill fitment - bolts into existing OEM mount points
